- Settings for a fully automated service or individual processes: For time and cost savings
- Recovery performance rate up to 95%: For effectiveness and sustainability
- Electronic control of internal air exchanges: For safety and to reduce the risk of high pressure
- Hose flushing function: For flexibility to service vehicles with combustion engines, as well as hybrid and electric vehicles (PAG/POE)
- Clear and intuitive interface on colour display with 100mm-wide gauges: For complete ease of use
- Maintenance-friendly design: For easy and efficient access to the internal components of the A/C service unit
- Broad and exceptional range of accessories: For a tailor-made solution to meet the workshop’s specific needs
AUTOMOTIVE DIAGNOSTIC EQUIPMENT
SALES & SERVICE
SALES & SERVICE

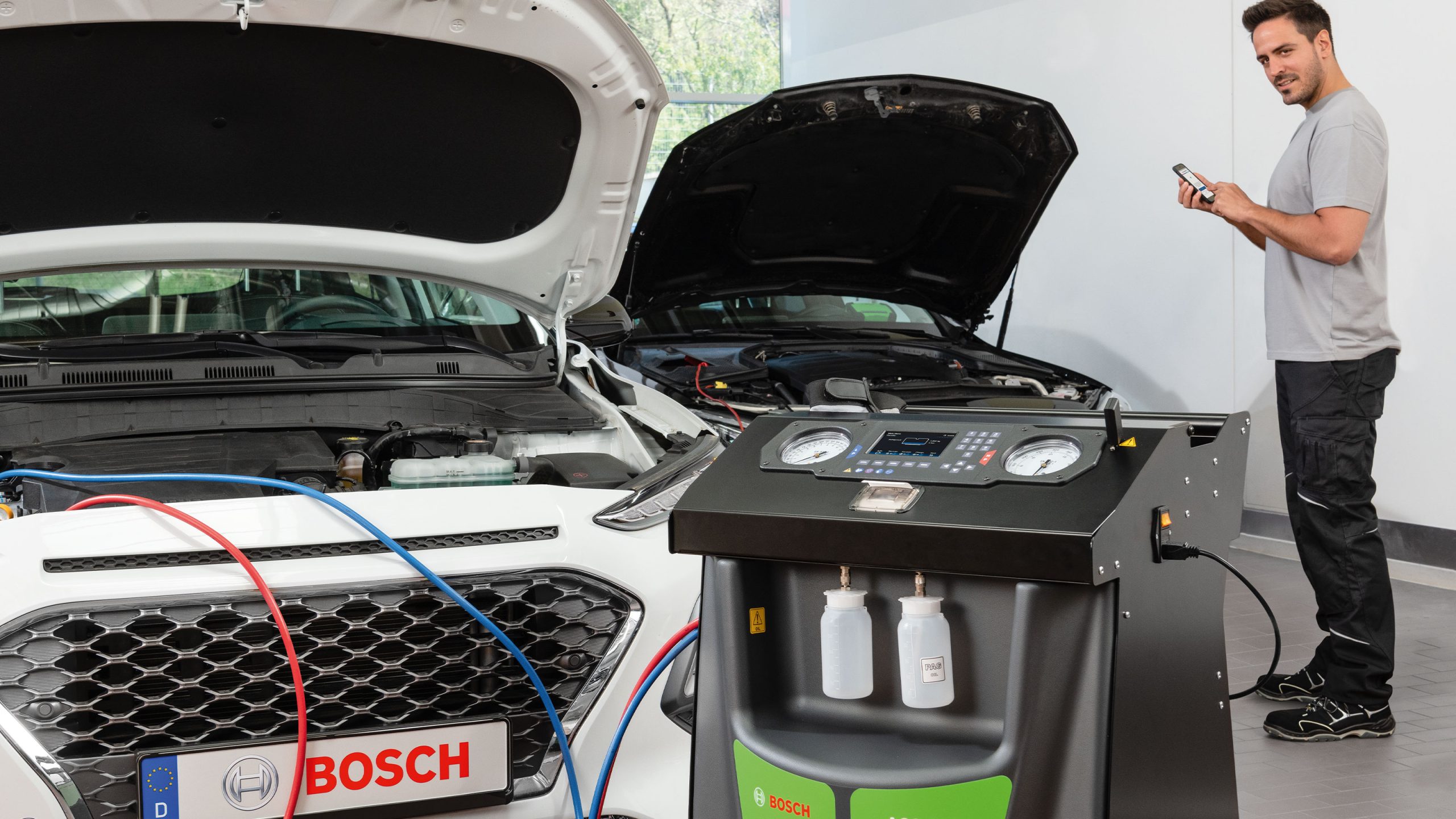

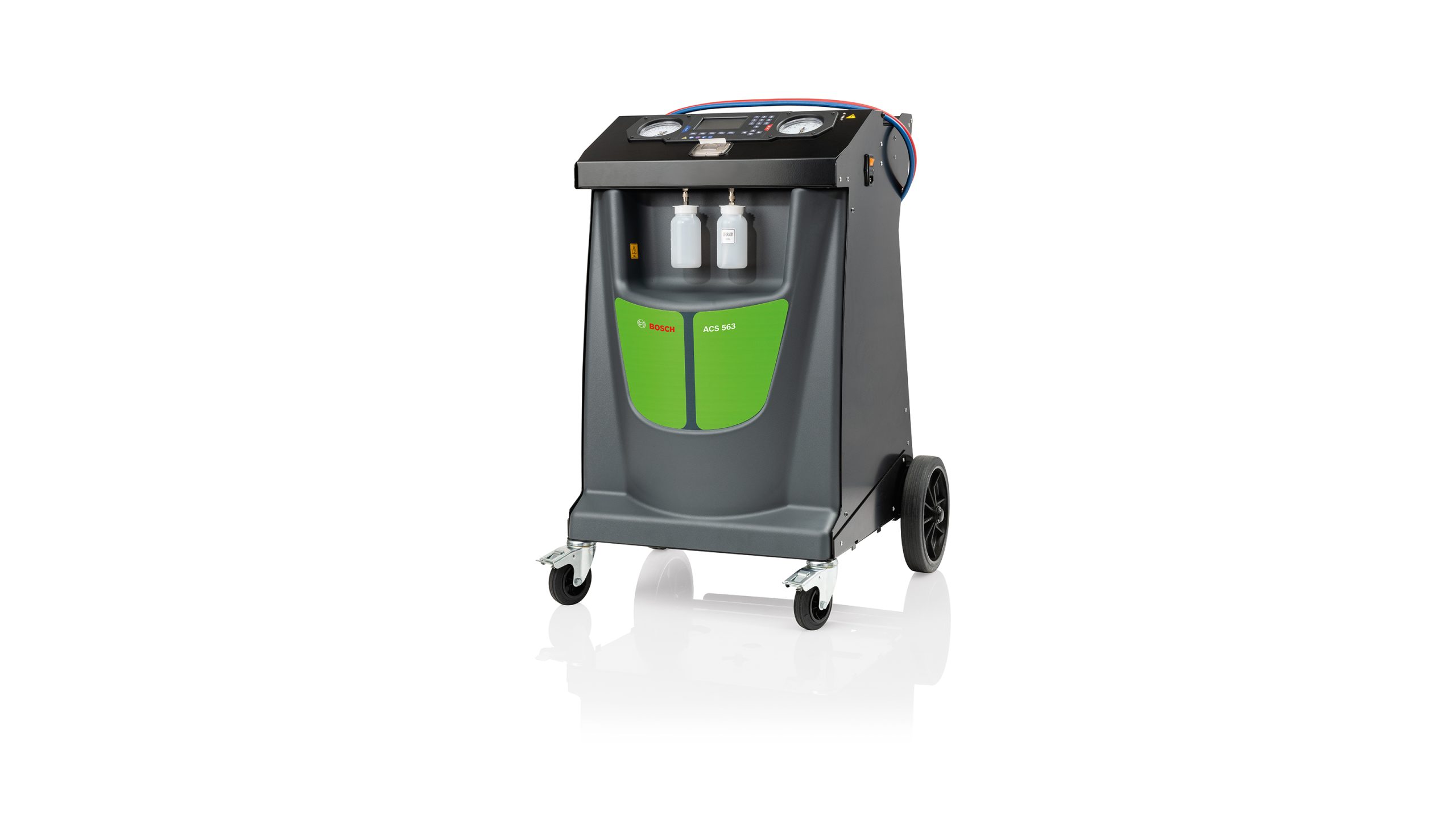

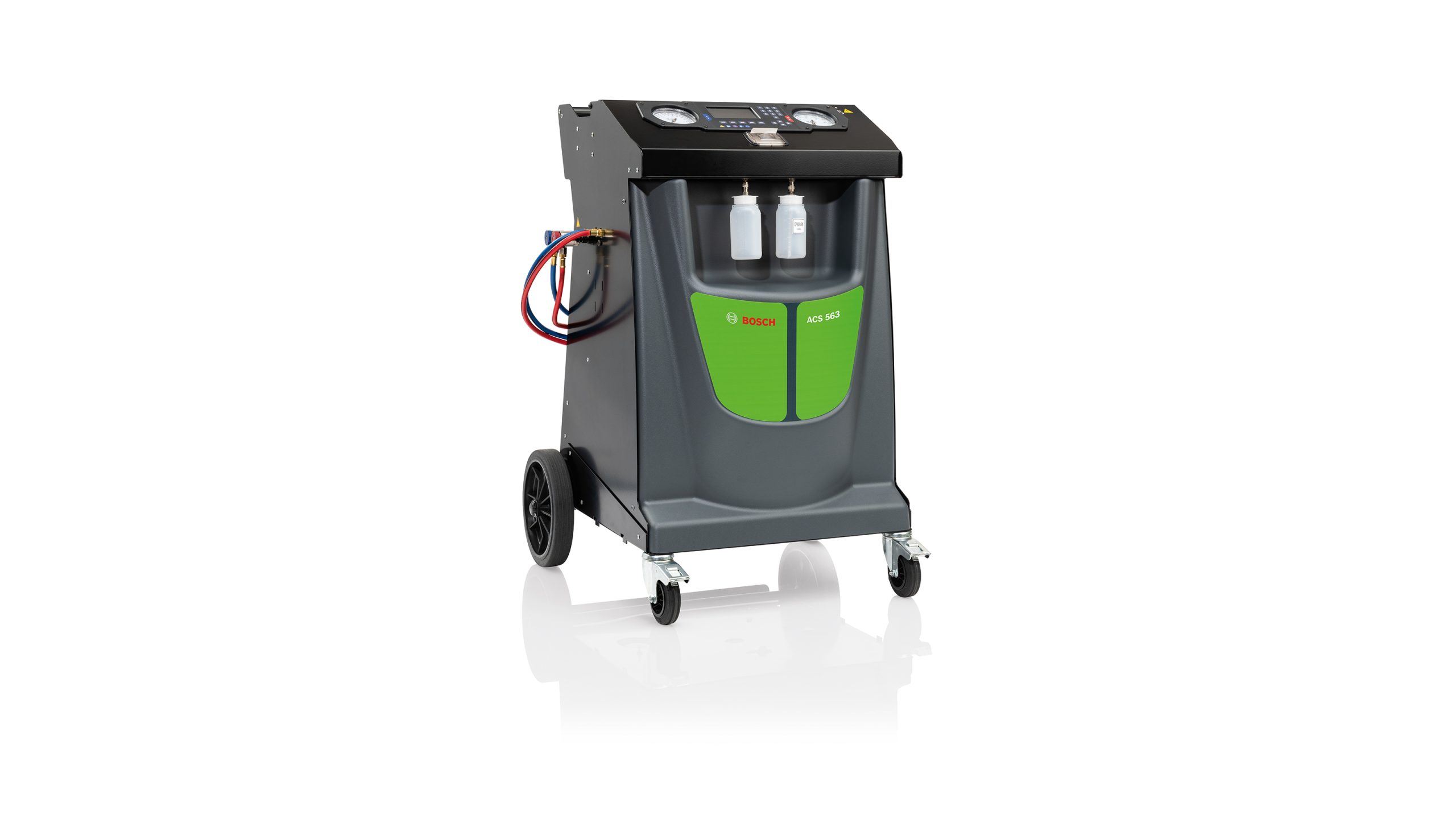

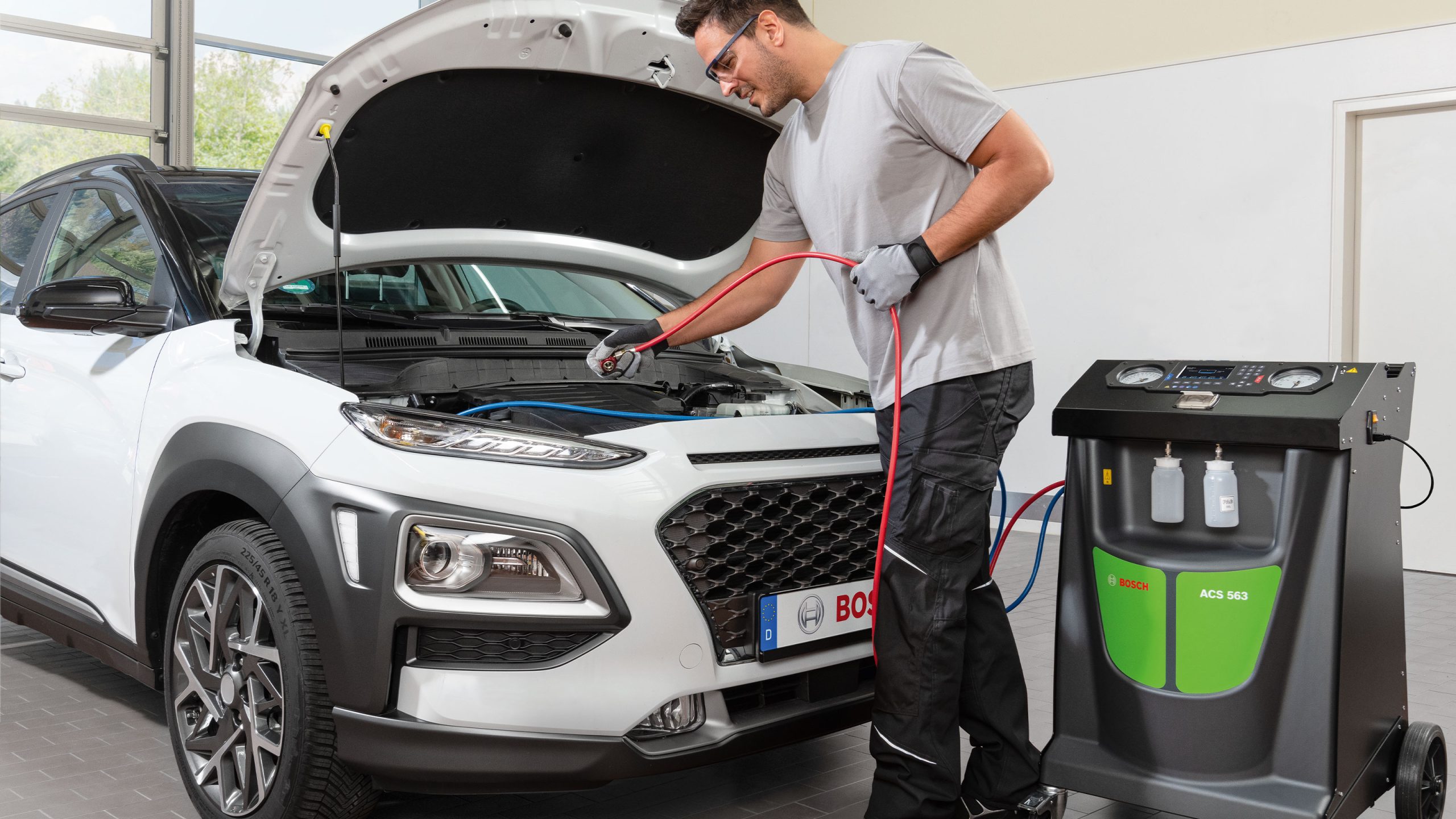

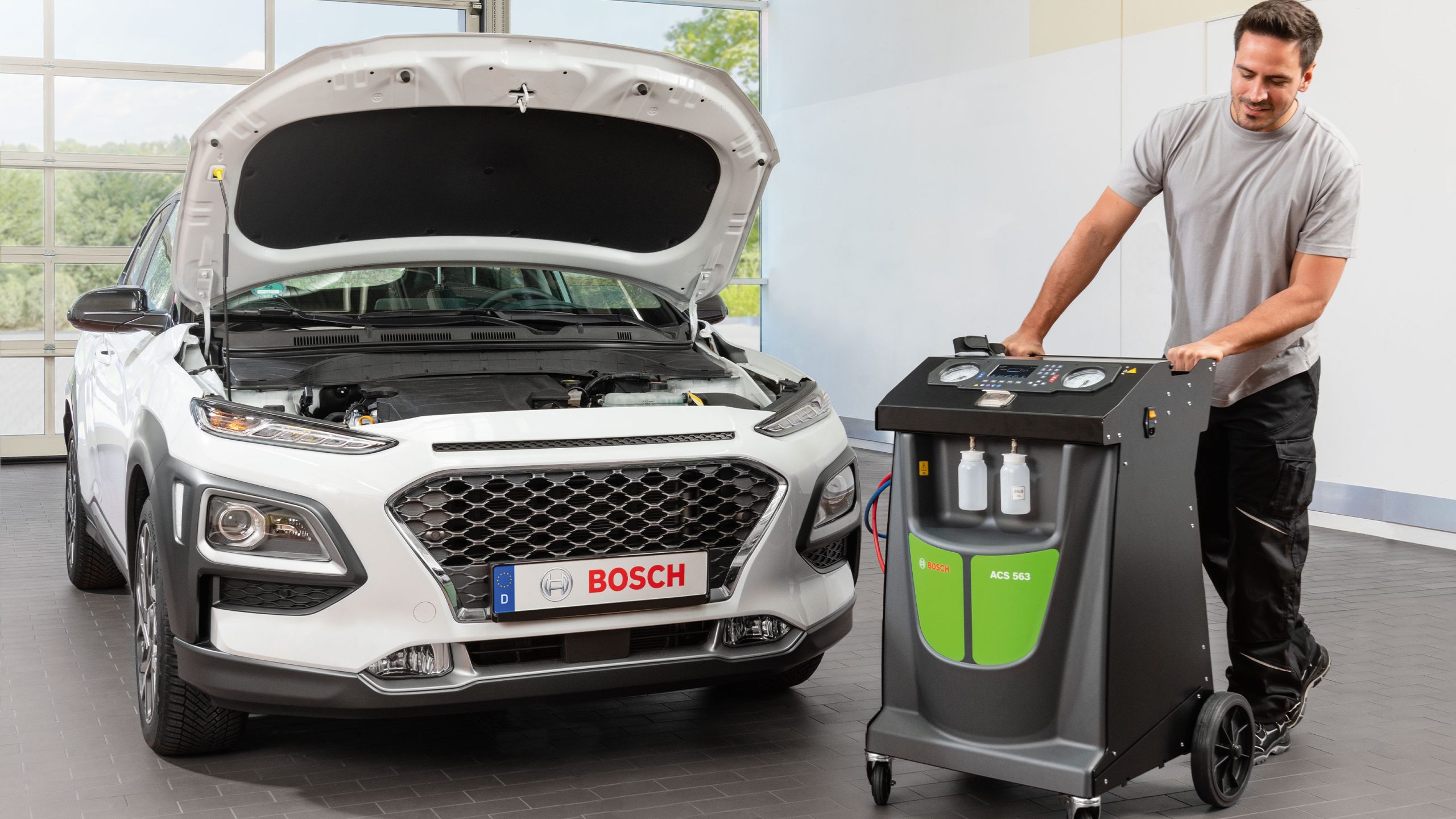

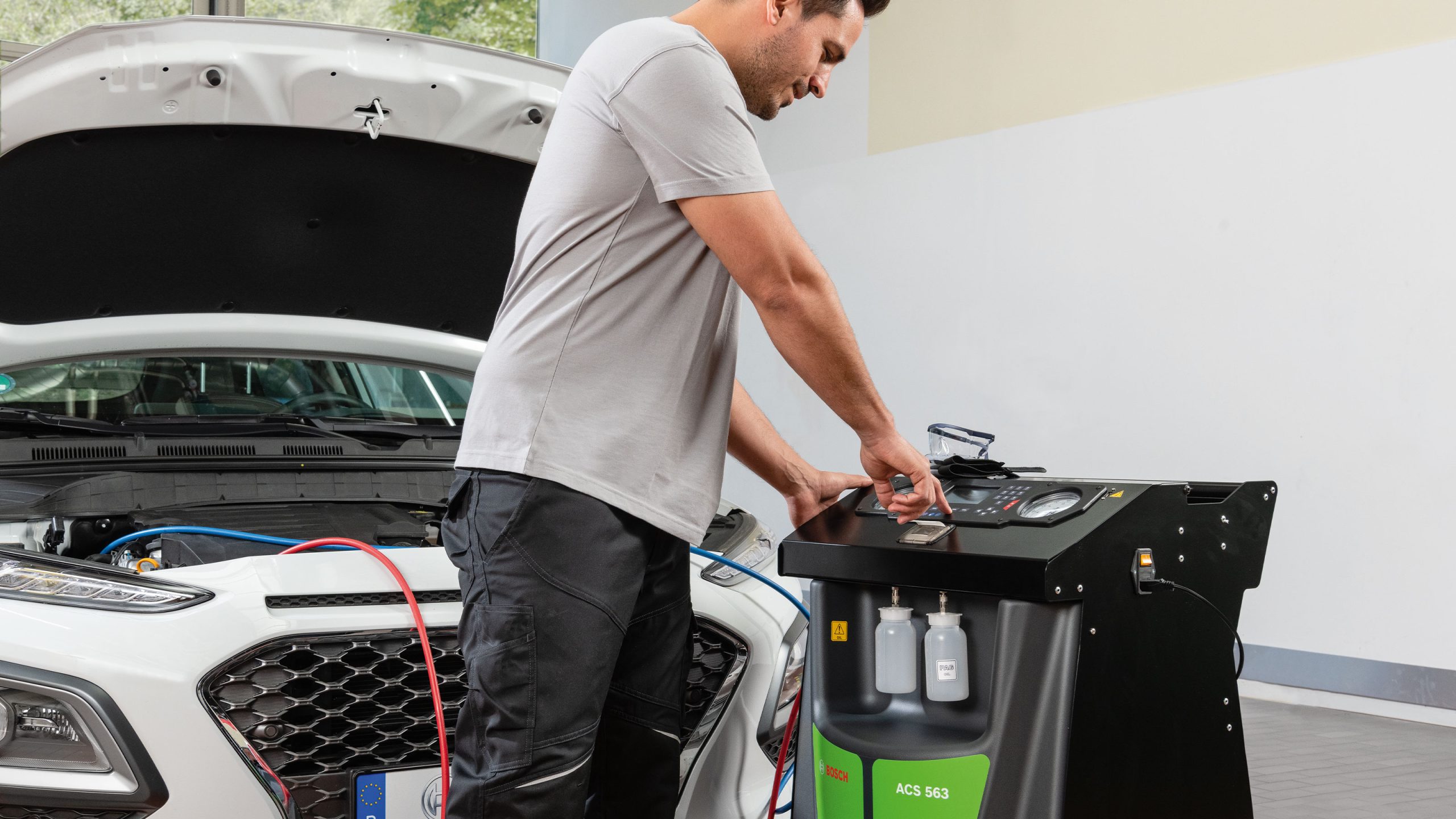

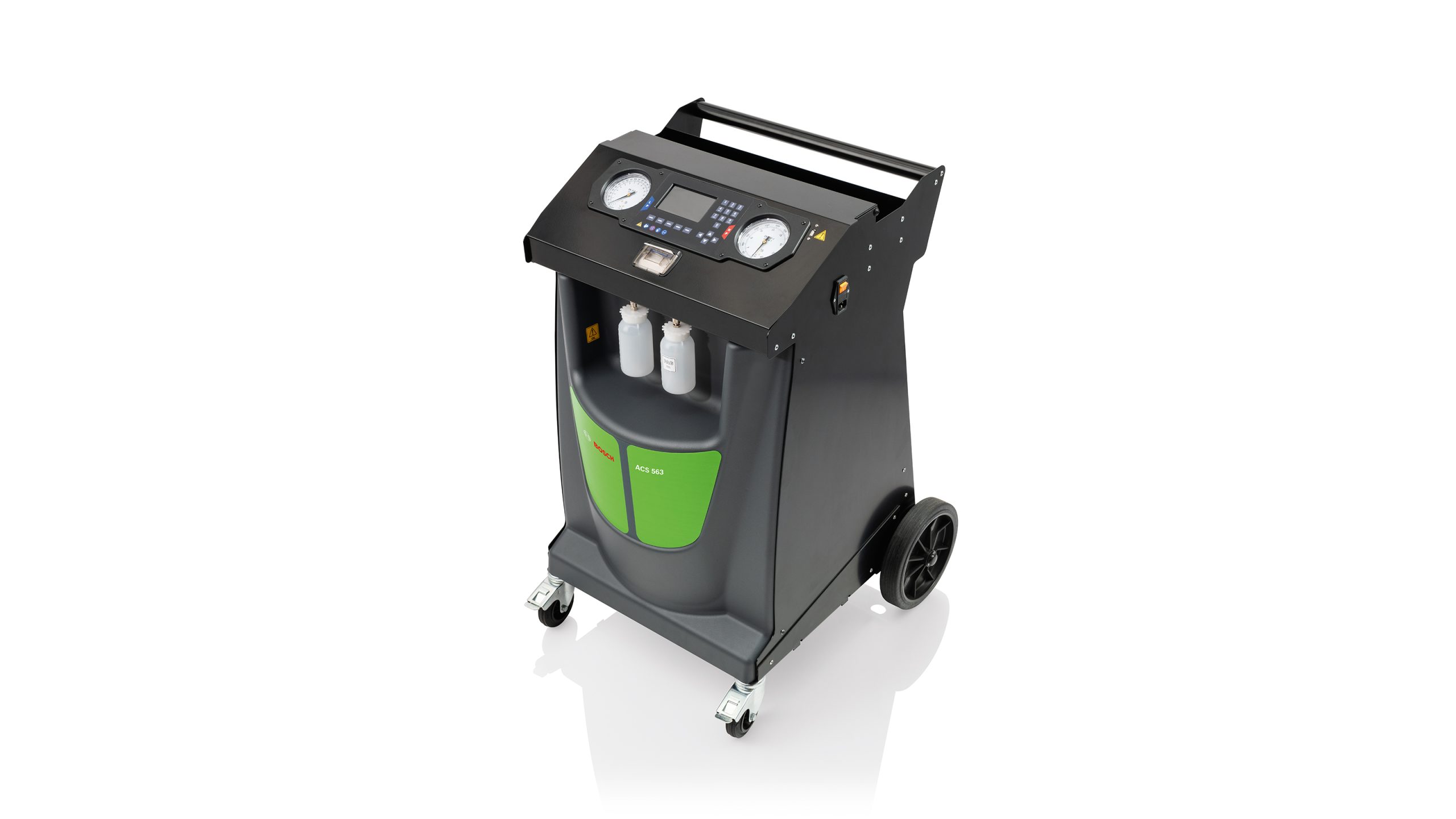

ACS 563 – air conditioning service unit for R1234yf
ACS 563 – air conditioning service unit for R1234yf
The ACS 563 air conditioning unit for vehicles with R1234yf refrigerant performs essential refrigerant recovery, recycling and recharge service and maintenance tasks with accuracy and ease.
Designed and developed specifically to be one of the most competitively priced units within our range, the ACS 563 is also fully automatic and maintenance-friendly, to save time and increase workshop efficiency.
Further options that can be added include Flushing Kits and the Wifi Connection kit.
| Refrigerant | R1234yf |
| Refrigerant
Operating mode
|
R1234yf
Fully automatic
|
| Refrigerant
Recovery function
|
R1234yf
Automatic
|
| Refrigerant
Recovery rate
|
R1234yf
Up to 95%
|
| Refrigerant
Refrigerant detection
|
R1234yf
Optional (external)
|
| Refrigerant
Oil drain
|
R1234yf
Automatic, timed
|
| Refrigerant
Vacuum function
|
R1234yf
Automatic
|
| Refrigerant
Leak test
|
R1234yf
Automatic
|
| Refrigerant
Pressure leak test
|
R1234yf
Yes
|
| Refrigerant
Pressure leak test (N2 / N2H2)
|
R1234yf
No
|
| Refrigerant
Hybrid oil function
|
R1234yf
Yes
|
| Refrigerant
Oil injection
|
R1234yf
PAG/POE
Automatic |
| Refrigerant
UV dye injection
|
R1234yf
No
|
| Refrigerant
Refrigerant charge
|
R1234yf
Automatic, with electronic scale
|
| Refrigerant
Flushing function
|
R1234yf
Optional
|
| Refrigerant
Printer
|
R1234yf
ACS 563-P
|
| Refrigerant
Ventilation system
|
R1234yf
Electronic control
|
| Refrigerant
Valves, HP/LP
|
R1234yf
Valveless
|
| Refrigerant
Pressure gage, HP/LP
|
R1234yf
100 mm, pulse-free
|
| Refrigerant
Tank pressure display
|
R1234yf
No
|
| Service hoses | 2.5 m (5 m optional) |
| Service hoses
Display
|
2.5 m (5 m optional) 4.3″ color display
|
| Service hoses
Compressor
|
2.5 m (5 m optional) 1/4 HP
|
| Service hoses
Vacuum pump
|
2.5 m (5 m optional) 70 l/min. (2.5 CFM)
|
| Service hoses
Refrigerant tank capacity
|
2.5 m (5 m optional) 8.9 kg (R1234yf)
|
| Service hoses
Oil bottles
|
2.5 m (5 m optional) 2 x 250 ml
|
| Service hoses
Used oil bottle
|
2.5 m (5 m optional) 1 x 250 ml
|
| Service hoses
UV dye bottle
|
2.5 m (5 m optional) No
|
| Service hoses
Dimensions in cm (L x W x H)
|
2.5 m (5 m optional) 99 x 69 x 67
|
| Service hoses
Weight
(with empty refrigerant tank) |
2.5 m (5 m optional) 74 kg
|
| Service hoses
Vehicle database
|
2.5 m (5 m optional) Yes
|
| Service hoses
Programmable user database
|
2.5 m (5 m optional) Yes
|
| Service hoses
A/C system performance test
|
2.5 m (5 m optional) Yes
|
| Service hoses
Vehicle flushing adapter kit
|
2.5 m (5 m optional) Optional kit
|
| Service hoses
USB port
|
2.5 m (5 m optional) Yes
|
| Service hoses
Wi-Fi connection
|
2.5 m (5 m optional) Optional
|
| Service hoses
App connection
|
2.5 m (5 m optional) Optional
|
- User manual
- High + Low side service hoses (R1234yf)
- High + Low side quick couplers (R1234yf)
- 1x (empty) oil bottle PAG 250 ml
- 1x (empty) oil bottle POE 250 ml
- 1x oil drain bottle 250ml
- EU power cable
- Printer paper roll (P variants only)
- UK power cable (P variants only)
|
ACT1234: Flushing kit R1234yf & R134a – Installation kit
|
S P00 101 175
|
|
ACT1234-SFK: Flushing kit R1234yf & R134a
|
S P00 101 176
|
|
FLG220: Universal Leak Detector (H2, R134a, R1234yf)
|
S P00 101 990
|
|
RA16286B: Universal UV Dye 240 ml for R134a and R1234yf
|
1 692 600 144
|
|
SP00101700: HP Service Port Adapter – HP Extension Service Port R1234yf
|
S P00 101 700
|
|
ACT12688: LP Service Port Adapter – LP Extension Service Port R1234yf
|
S P00 101 825
|
|
5604052: Vacuum Pump Oil (1 bottle 600 ml)
|
S P00 100 086
|
|
5604052PACK: Vacuum Pump Oil (12 bottles 600 ml)
|
S P00 100 088
|
|
PAG 46 Oil Bottle (250 ml) for R1234yf systems
|
S P00 101 422
|
|
POE Oil Bottle (250 ml) for Electrical and Hybrid systems for R1234yf
|
S P00 101 827
|
|
PAG Oil Bottle (250 ml) for Electrical and Hybrid systems with SANDEN SPA2 (R134a/R1234yf)
|
S P00 101 828
|
|
Wi-Fi Connection kit for ACSxx3 unit
|
S P00 101 379
|
|
ACT1234-PIK: Printer Installation kit for ACS xx3 series
|
S P00 101 953
|
|
5607059: Printer paper
|
S P00 100 087
|
|
1234-SH5: R1234yf 5 mt Service hoses kit for ACS xx3 units
|
S P00 101 877
|
|
STRPK_1234yf: Starter kit R1234yf (O’ring set, UV Dye (250 ml); PAG 46yf (250 ml); UV Lamp with goggle; Safety kit)
|
S P00 101 409
|
|
