- Maintenance-friendly design: For easy and efficient access to the internal components of the A/C service unit
- Deep Recovery function with 99% of the refrigerant able to be recovered within minutes: Cutting time and costs while protecting the environment

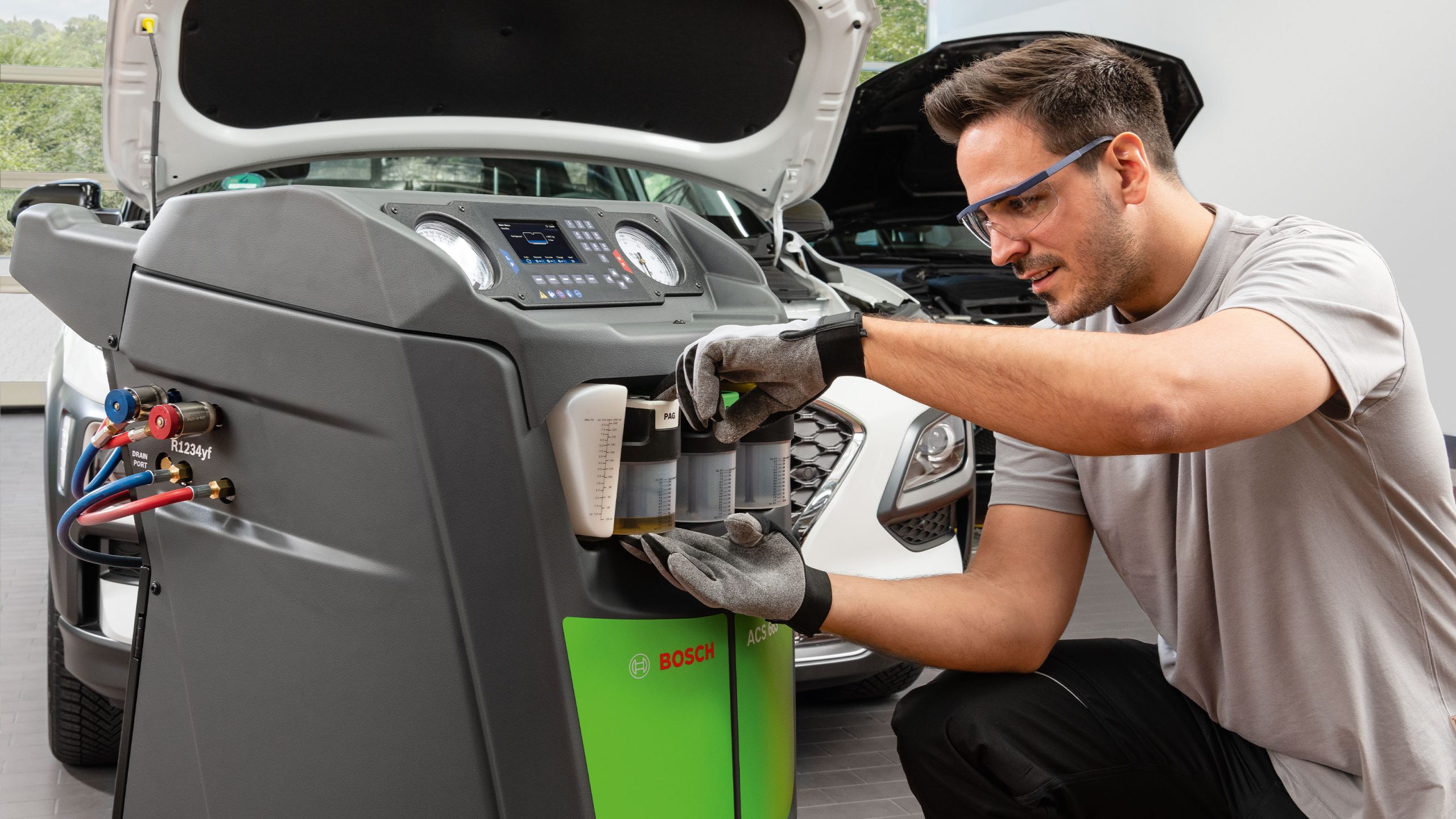

- Innovative oil bottle system: For servicing vehicles with combustion engines and hybrid vehicles (PAG/POE)
- Designed with user-experience in mind: For the perfect combination of robustness and flexible mobile use
- Bosch Connected Repair compatible
- Integrated printer for models ACS663-RI & ACS663-P
- Integrated refrigerant identifier optional on model ACS663-RI optional for ACS663-P
AUTOMOTIVE DIAGNOSTIC EQUIPMENT
SALES & SERVICE
SALES & SERVICE

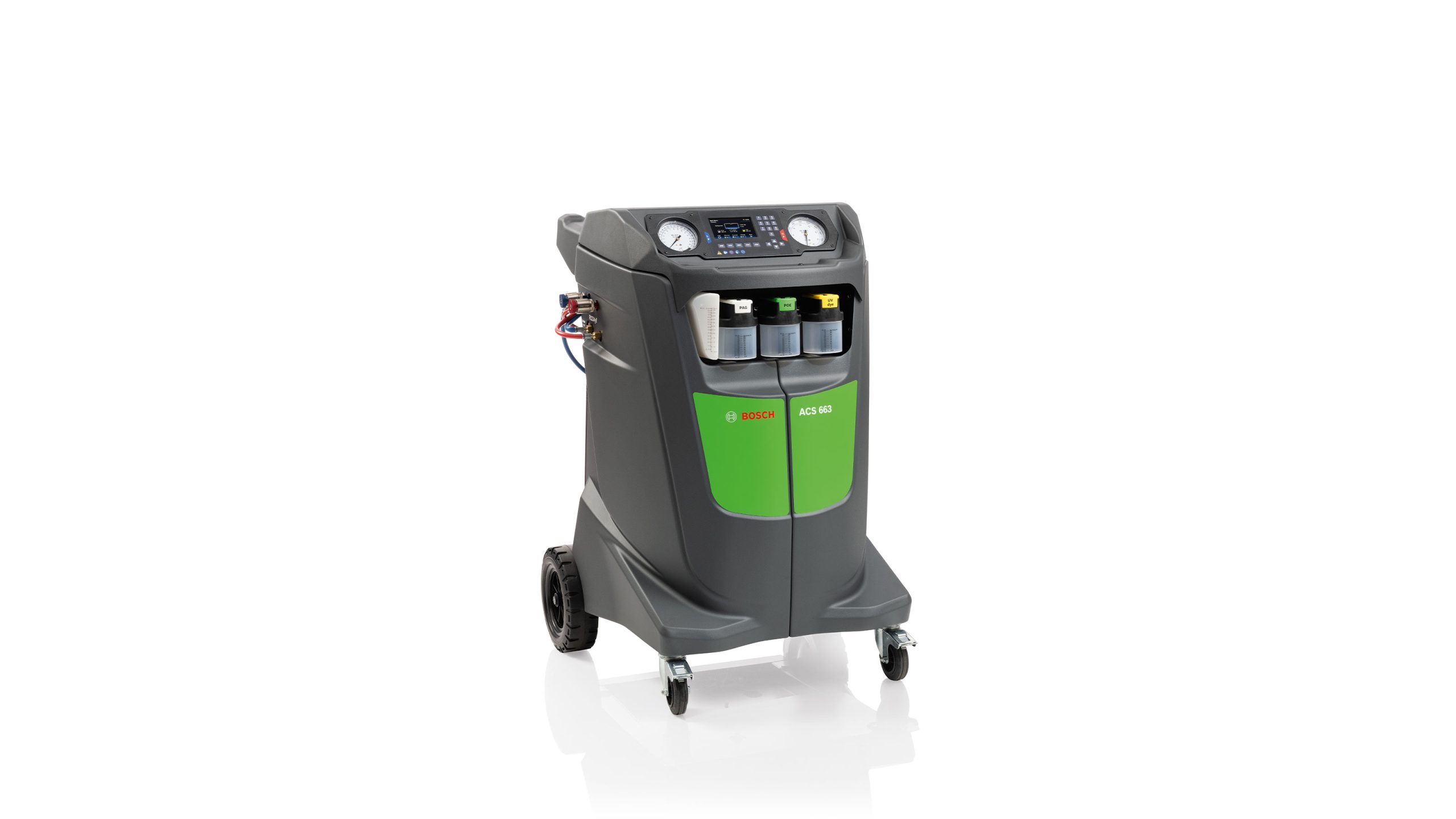

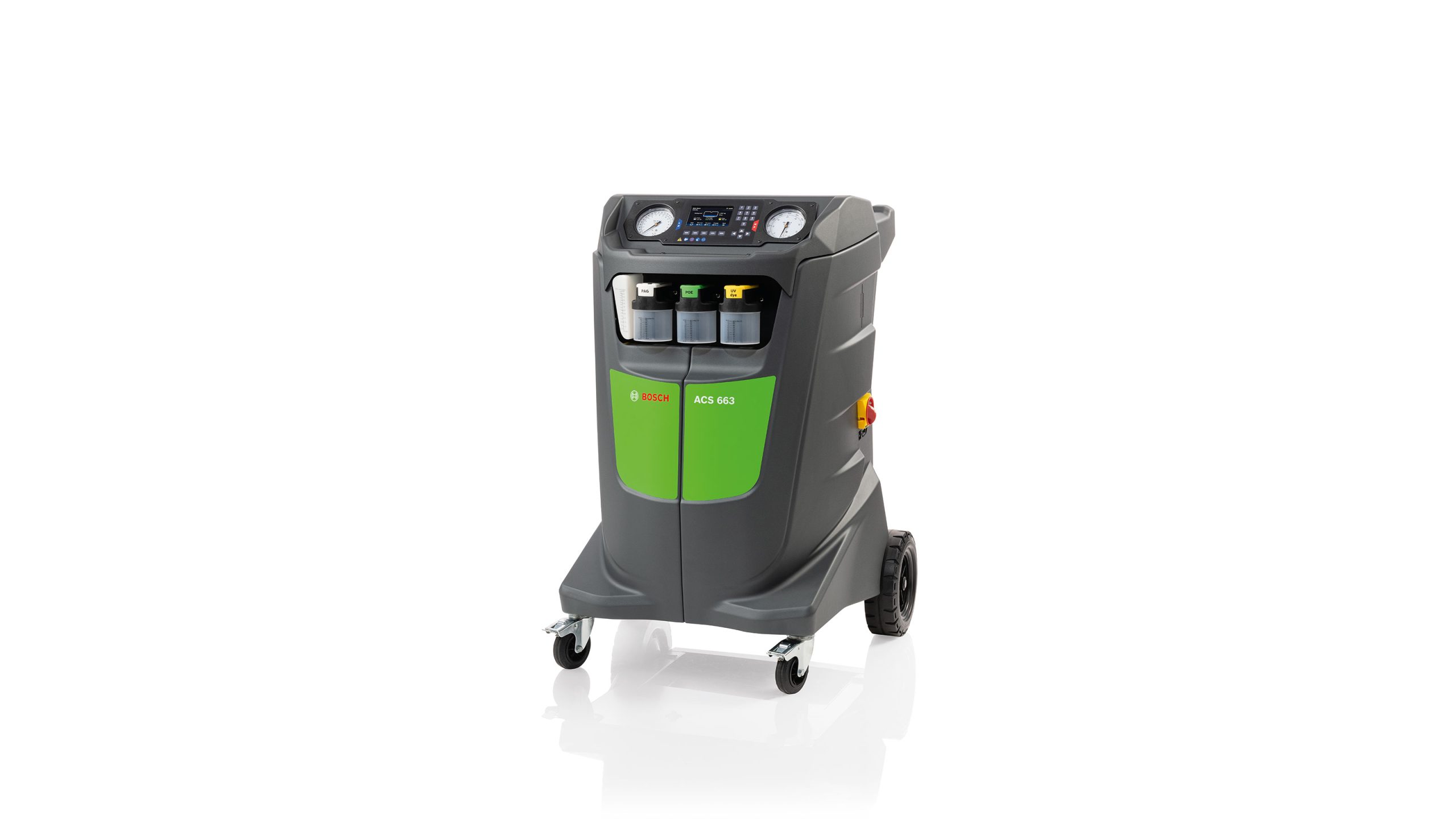

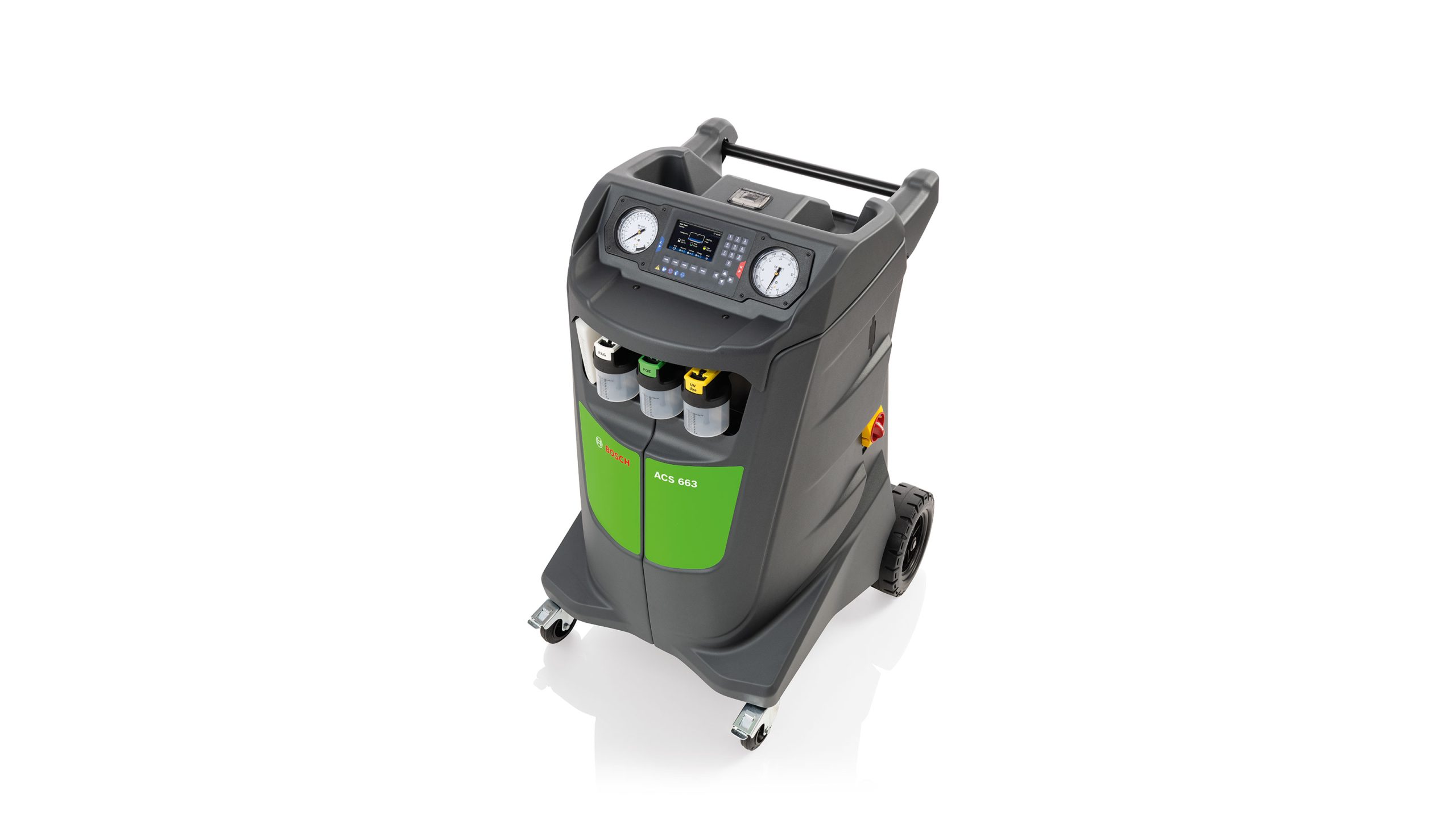

ACS 663-P – air conditioning service unit for R1234yf
ACS 663-P – air conditioning service unit for R1234yf

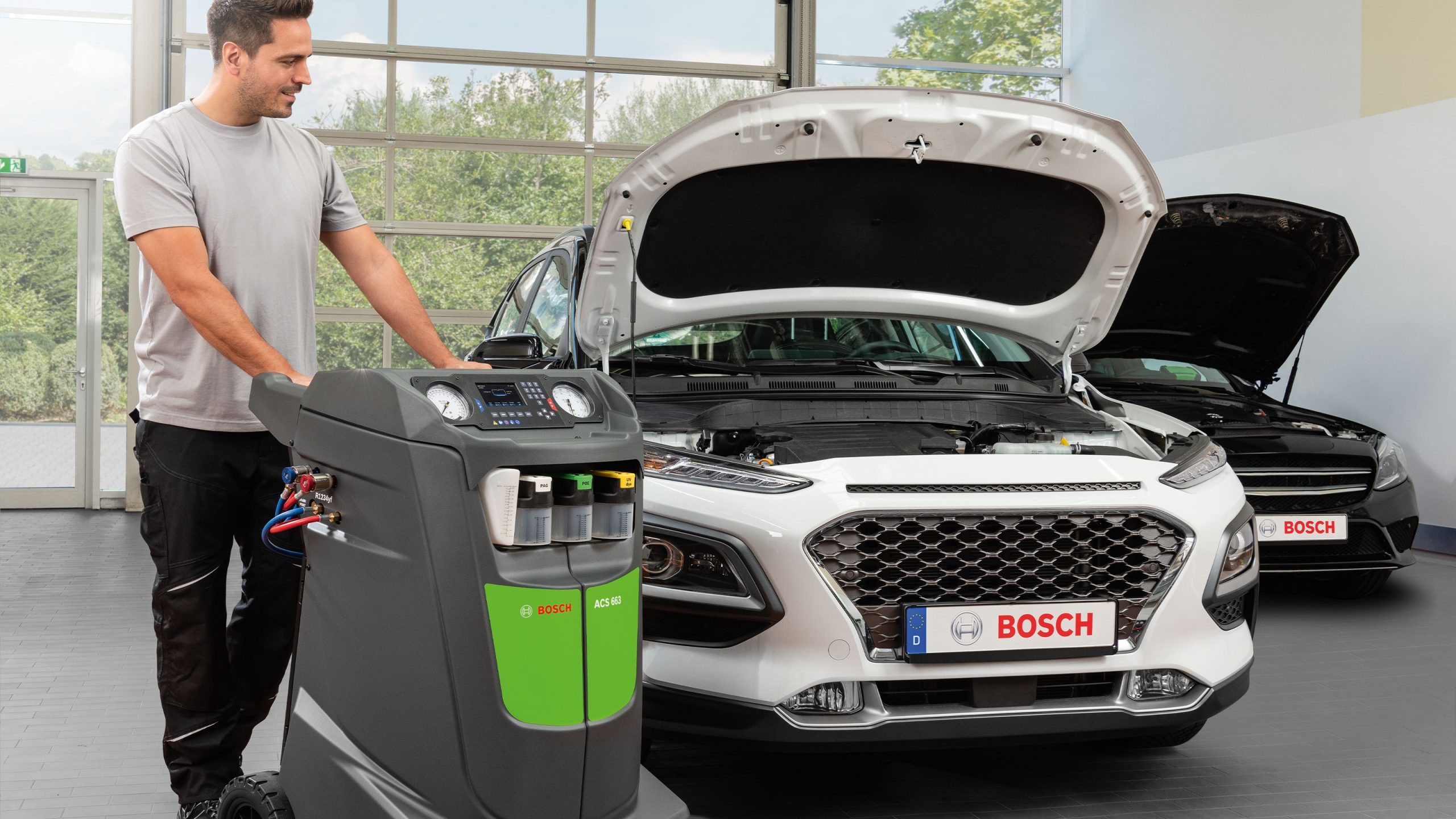

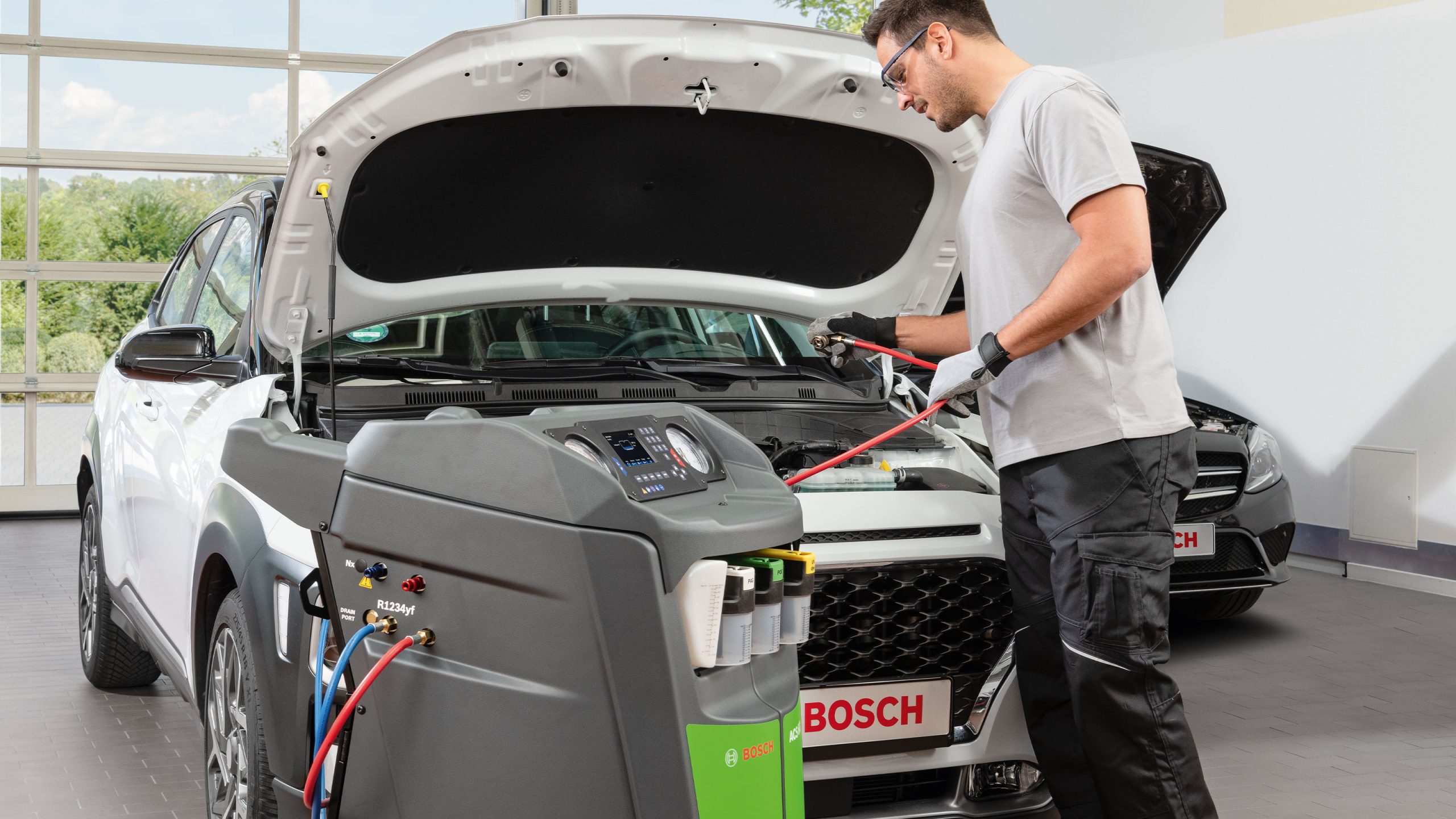

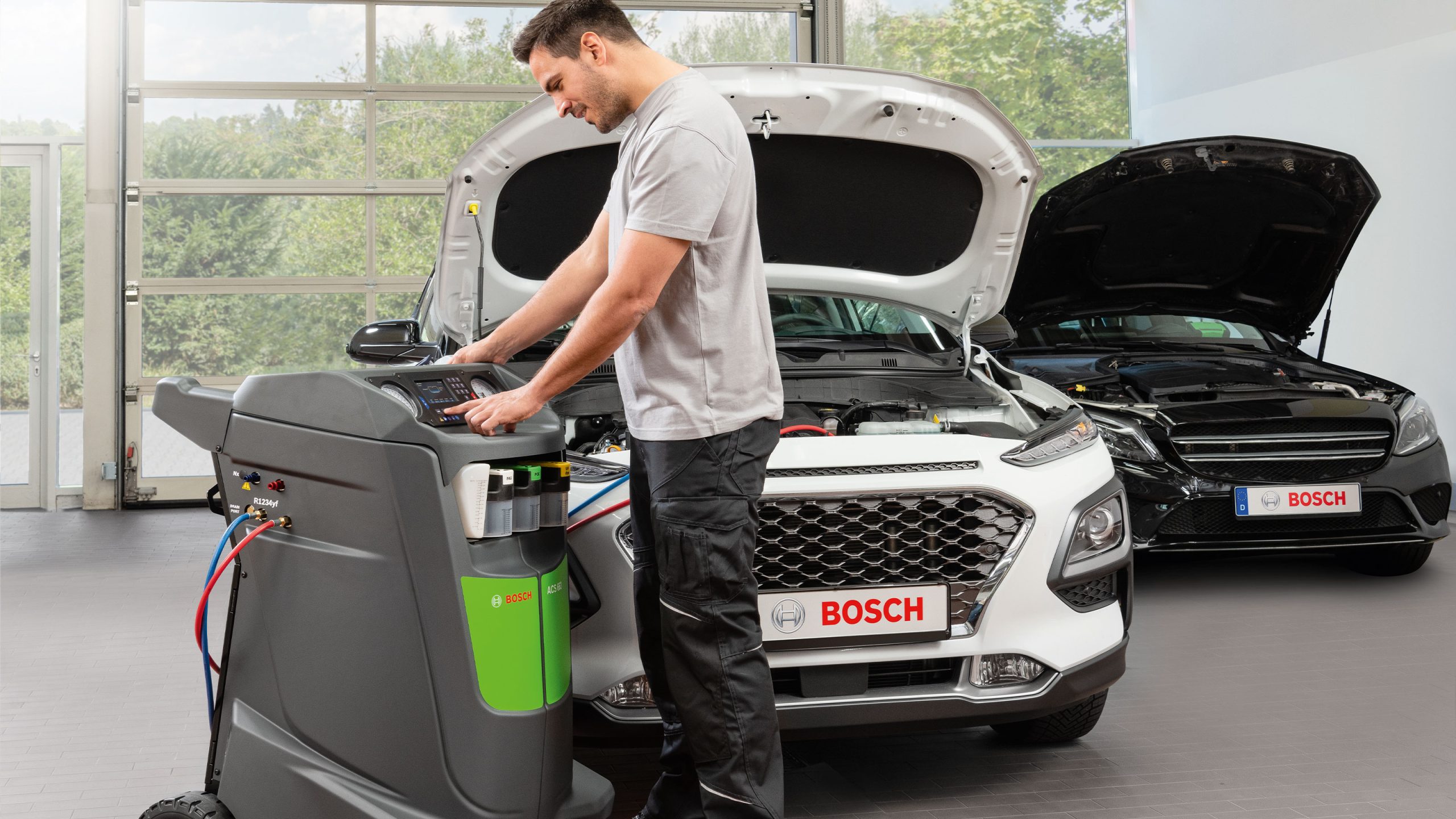

Meeting the technically demanding European standards, the ACS 663-P’s high precision measuring technology and fully-automatic service function enables efficient service work on the A/C systems of cars and commercial vehicles.

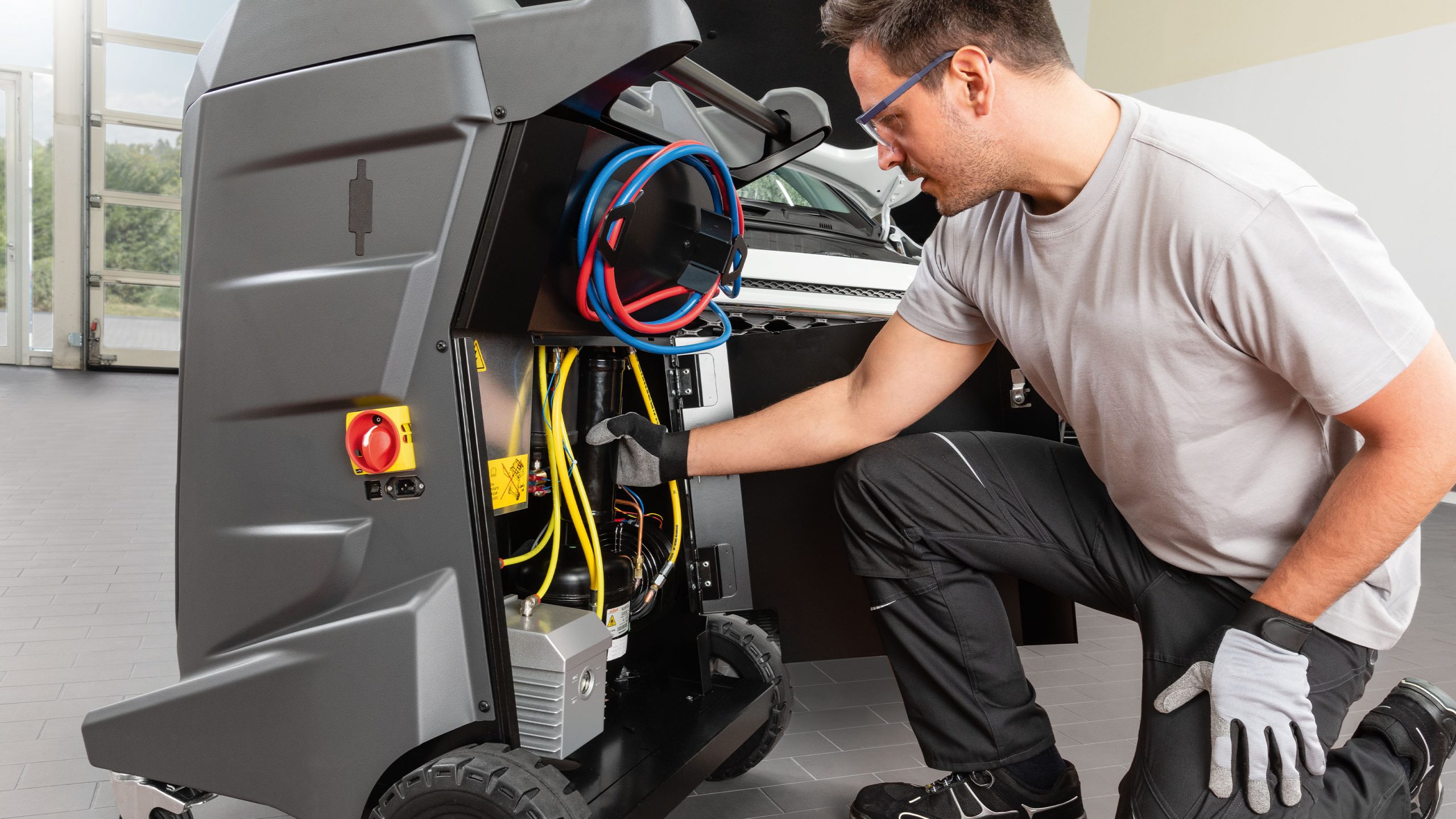

The unit’s maintenance-friendly design allows fast and easy access to all the internal parts, saving time increasing workshop efficiency.
Two oil bottles for PAG and POE lubricants along with an automatic flushing function make the unit compatible with hybrid and electric vehicles too.
| Refrigerant | R1234yf |
| Refrigerant
Operating mode
|
R1234yf
Fully-automatic
|
| Refrigerant
Recovery function
|
R1234yf
Automatic
|
| Refrigerant
Recovery rate
|
R1234yf
> 99%
|
| Refrigerant
Refrigerant detection
(integrated in ACS 663-RI) |
R1234yf
Optional
|
| Refrigerant
Oil drain
|
R1234yf
Automatic, with electronic scale
|
| Refrigerant
Vacuum function
|
R1234yf
Automatic
|
| Refrigerant
Leak test
|
R1234yf
Automatic
|
| Refrigerant
Pressure leak test
|
R1234yf
Yes
|
| Refrigerant
Pressure leak test (N2 / N2H2)
|
R1234yf
Optional
|
| Refrigerant
Hybrid oil function
|
R1234yf
Yes
|
| Refrigerant
Oil injection
|
R1234yf
PAG/POE
Automatic |
| Refrigerant
UV dye injection
|
R1234yf
Automatic
|
| Refrigerant
Refrigerant volume
|
R1234yf
Automatic, with electronic scale
|
| Refrigerant
Flushing function
|
R1234yf
Optional
|
| Refrigerant
Printer
|
R1234yf
ACS 663-P
ACS 663-RI |
| Refrigerant
Ventilation system
|
R1234yf
Electronic control
|
| Valves, HP/LP | – |
| Valves, HP/LP
Pressure gage, HP/LP
|
–
100 mm, pulse-free
|
| Valves, HP/LP
Tank pressure display
|
–
Digital
|
| Valves, HP/LP
Service hoses
|
–
2,5 m (5 m optional)
|
| Valves, HP/LP
Display
|
–
4.3″ color display
|
| Valves, HP/LP
Compressor
|
–
1/4 HD
|
| Valves, HP/LP
Vacuum pump
|
–
170 l/min. (6 CFM)
|
| Valves, HP/LP
Refrigerant tank
|
–
19.5 kg/21.5 kg
|
| Valves, HP/LP
Oil bottles
|
–
2 x 250 ml
(hermetically-sealed as an option) |
| Valves, HP/LP
Dimensions in cm (L x W x H)
|
–
105 x 75 x 77
|
| Valves, HP/LP
Weight
(with empty refrigerant tank) |
–
112 kg
|
| Valves, HP/LP
Vehicle database
|
–
Yes
|
| Valves, HP/LP
Programmable user database
|
–
Yes
|
| Valves, HP/LP
A/C system performance test
|
–
Yes
|
| Valves, HP/LP
Vehicle flushing adapter kit
|
–
Optional kit
|
| Valves, HP/LP
USB port
|
–
Yes
|
| Valves, HP/LP
Wi-Fi connection
|
–
Optional
|
| Valves, HP/LP
App connection
|
–
Optional
|
- Safety kit (glasses and gloves)
- manual
- High pressure service hose
- Low pressure service hose
- 1x New oil bottle PAG 250 ml
- 1x new oil bottle POE 250 ml
- 1x UV contrast liquid bottle 250 ml
- 1x oil drain tank
- Quick couppler
- power cable
- tank adapter
- dust cover
|
ACT1234: Flushing kit R1234yf & R134a – Installation kit
|
S P00 101 175
|
|
ACT1234-SFK: Flushing kit R1234yf & R134a
|
S P00 101 176
|
|
FLG220: Universal Leak Detector (H2, R134a, R1234yf)
|
S P00 101 990
|
|
ACT1234-NIK – N2H2 Installation kit for ACS 6×3 unit
|
S P00 101 952
|
|
RA16286B: Universal UV Dye 240 ml for R134a and R1234yf
|
1 692 600 144
|
|
SP00101700: HP Service Port Adapter – HP Extension Service Port R1234yf
|
S P00 101 700
|
|
ACT12688: LP Service Port Adapter – LP Extension Service Port R1234yf
|
S P00 101 825
|
|
5604052: Vacuum Pump Oil (1 bottle 600 ml)
|
S P00 100 086
|
|
5604052PACK: Vacuum Pump Oil (12 bottles 600 ml)
|
S P00 100 088
|
|
PAG 46 Oil Bottle (250 ml) for R1234yf systems
|
S P00 101 422
|
|
POE Oil Bottle (250 ml) for Electrical and Hybrid systems for R1234yf
|
S P00 101 827
|
|
PAG Oil Bottle (250 ml) for Electrical and Hybrid systems with SANDEN SPA2 (R134a/R1234yf)
|
S P00 101 828
|
|
Wi-Fi Connection kit for ACSxx3 unit
|
S P00 101 379
|
|
ACT1234-PIK: Printer Installation kit for ACS 6×3 series
|
S P00 101 953
|
|
5607059: Printer paper
|
S P00 100 087
|
|
1234-SH5: R1234yf 5 mt Service hoses kit for ACS xx3 units
|
S P00 101 877
|
|
ACT1234-RIK – R1234yf Refrigerant Identifier Kit
|
S P00 101 951
|
|
STRPK_1234yf: Starter kit R1234yf (O’ring set, UV Dye (250 ml); PAG 46yf (250 ml); UV Lamp with goggle; Safety kit)
|
S P00 101 409
|
|
