- Settings for a fully automated service or individual processes: For time and cost savings
- Recovery performance rate up to 95%: For effectiveness and sustainability
- Electronic control of internal air exchanges: For safety and to reduce the risk of high pressure
- Hose flushing function: For flexibility to service vehicles with combustion engines, as well as hybrid and electric vehicles (PAG/POE)
- Clear and intuitive interface on colour display with 100mm-wide gauges: For complete ease of use
- Maintenance-friendly design: For easy and efficient access to the internal components of the A/C service unit
- Broad and exceptional range of accessories: For a tailor-made solution to meet the workshop’s specific needs
AUTOMOTIVE DIAGNOSTIC EQUIPMENT
SALES & SERVICE
SALES & SERVICE

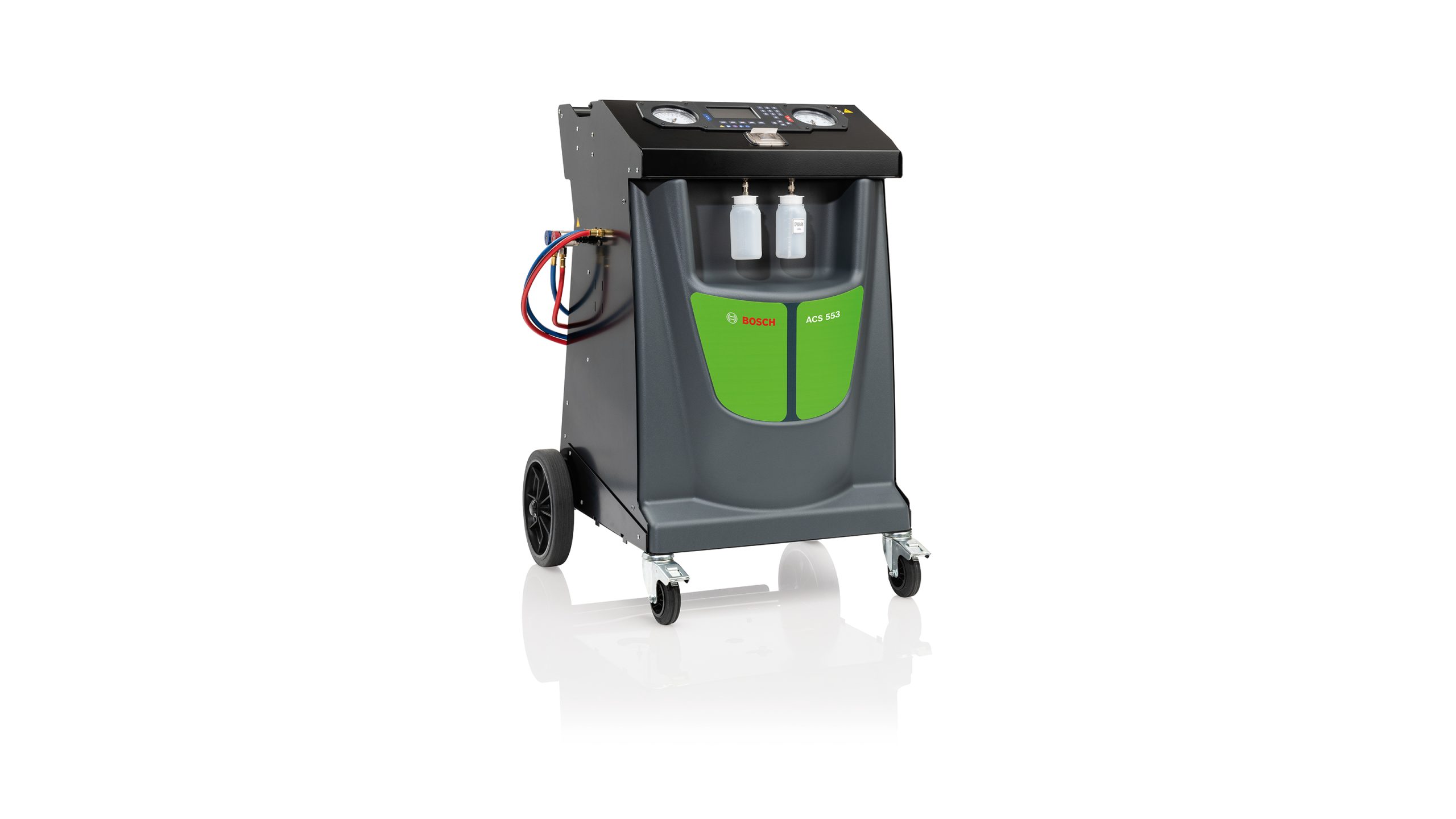

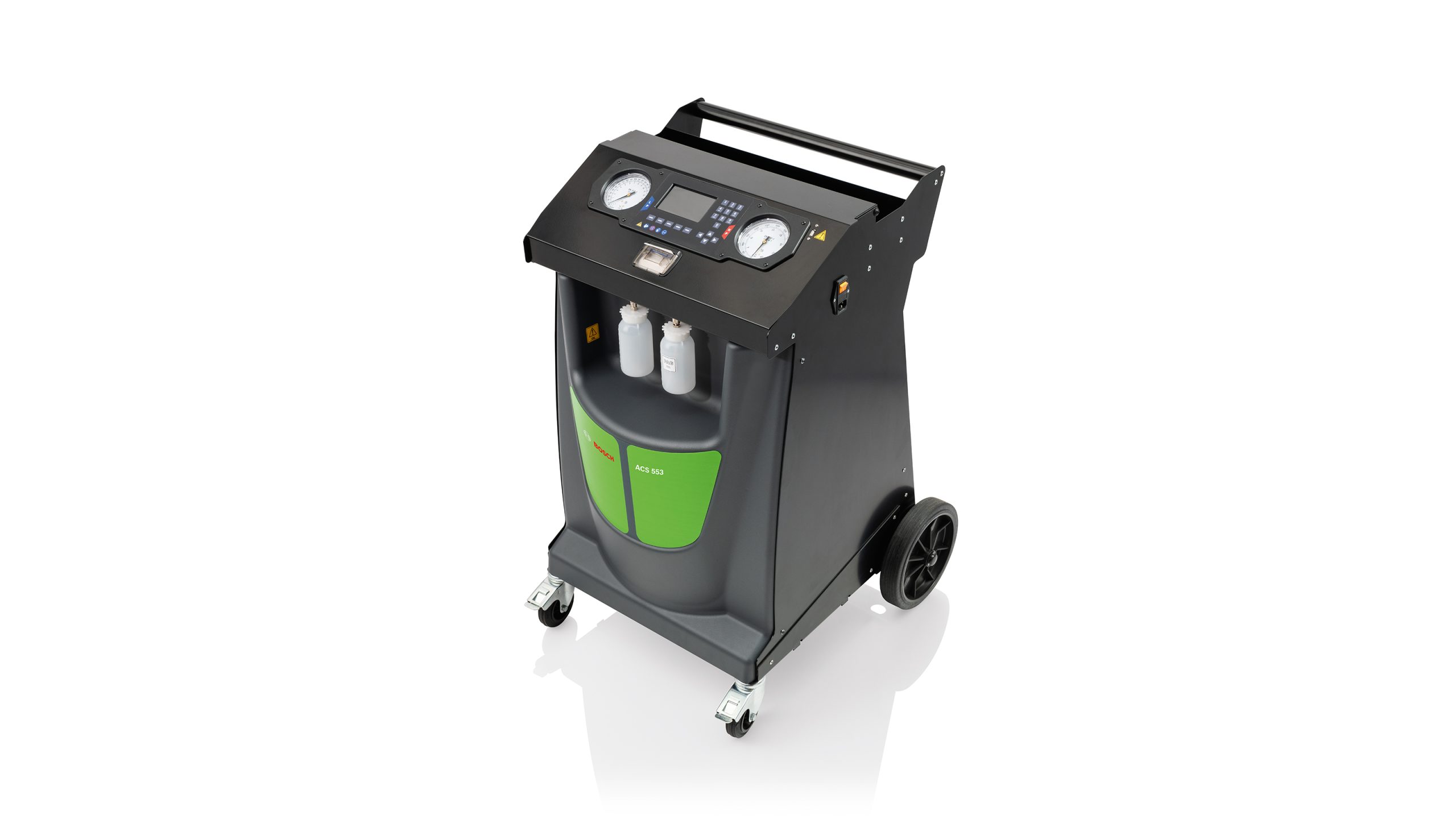

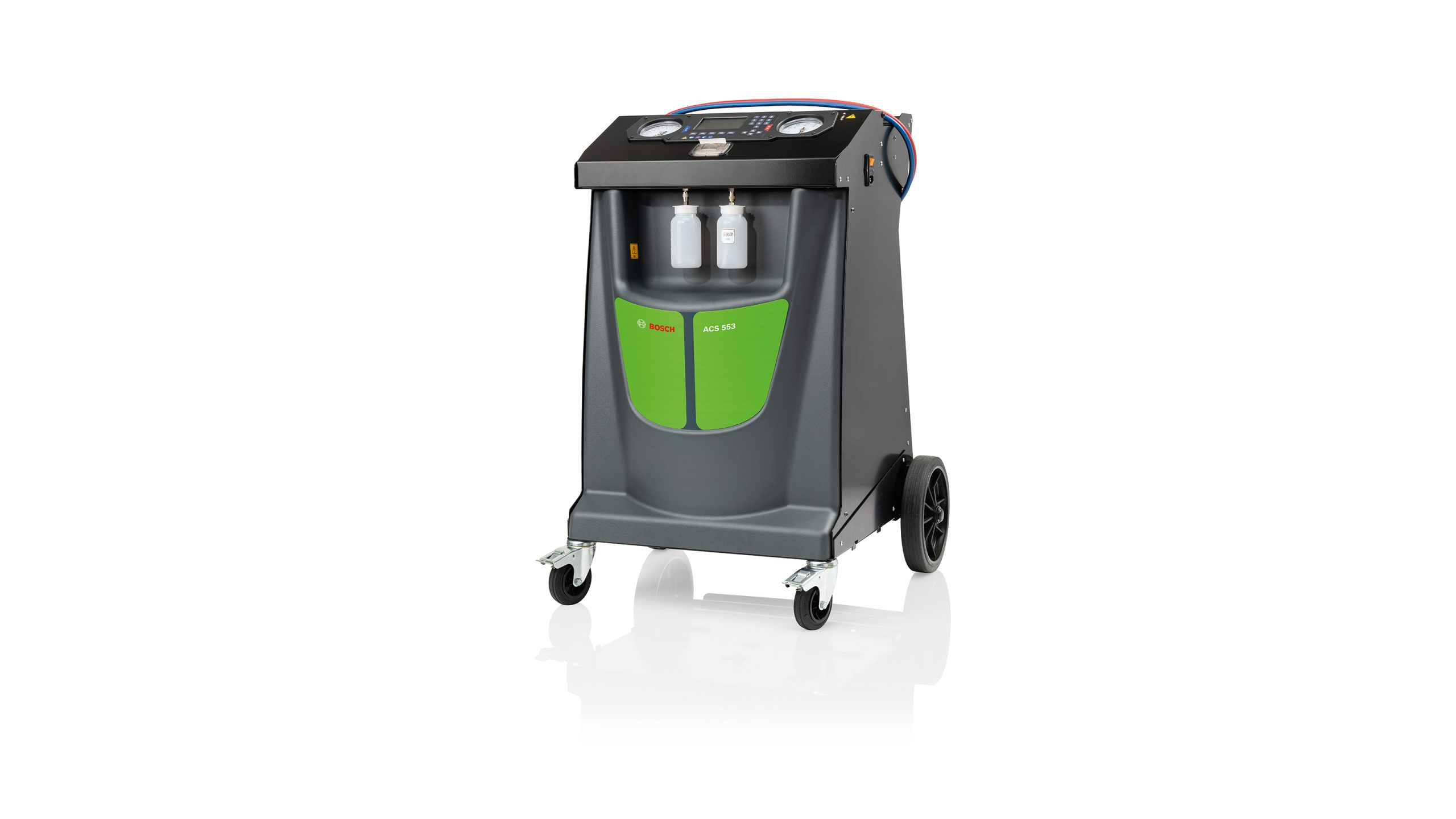

ACS 553 – air conditioning service unit for R134a
ACS 553 – air conditioning service unit for R134a
The ACS 553 air conditioning unit for vehicles with R134a refrigerant performs the essential refrigerant recovery, recycling and recharge service and maintenance tasks with accuracy and ease.
Designed and developed specifically to be one of the most competitively priced units within our range, the ACS 553 is also fully automatic and maintenance-friendly, to save time and increase workshop efficiency.
Further options that can be added include Flushing Kits and the Wifi Connection kit.
| Refrigerant | R134a |
| Refrigerant
Operating mode
|
R134a
Fully automatic
|
| Refrigerant
Recovery function
|
R134a
Automatic
|
| Refrigerant
Recovery rate
|
R134a
Up to 95%
|
| Refrigerant
Refrigerant detection
|
R134a
Optional (external)
|
| Refrigerant
Oil drain
|
R134a
Automatic, timed
|
| Refrigerant
Vacuum function
|
R134a
Automatic
|
| Refrigerant
Leak test
|
R134a
Automatic
|
| Refrigerant
Pressure leak test
|
R134a
Yes
|
| Refrigerant
Pressure leak test (N2 / N2H2)
|
R134a
No
|
| Refrigerant
Hybrid oil function
|
R134a
Yes
|
| Refrigerant
Oil injection
|
R134a
PAG/POE
Automatic |
| Refrigerant
UV dye injection
|
R134a
No
|
| Refrigerant
Refrigerant charge
|
R134a
Automatic, with electronic scale
|
| Refrigerant
Flushing function
|
R134a
Optional
|
| Refrigerant
Printer
|
R134a
ACS 553-P
|
| Refrigerant
Ventilation system
|
R134a
Electronic control
|
| Refrigerant
Valves, HP/LP
|
R134a
Valveless
|
| Refrigerant
Pressure gage, HP/LP
|
R134a
100 mm, pulse-free
|
| Tank pressure display | No |
| Tank pressure display
Service hoses
|
No
2,5 m (5 m optional)
|
| Tank pressure display
Display
|
No
4.3″ color display
|
| Tank pressure display
Compressor
|
No
1/4 HP
|
| Tank pressure display
Vacuum pump
|
No
70 l/min. (2.5 CFM)
|
| Tank pressure display
Refrigerant tank capacity
|
No
9.8 kg (R134a)
|
| Tank pressure display
Oil bottles
|
No
2 x 250 ml
|
| Tank pressure display
Used oil bottle
|
No
1 x 250 ml
|
| Tank pressure display
UV dye bottle
|
No
No
|
| Tank pressure display
Dimensions in cm (L x W x H)
|
No
99 x 69 x 67
|
| Tank pressure display
Weight
(with empty refrigerant tank) |
No
74 kg
|
| Tank pressure display
Vehicle database
|
No
Yes
|
| Tank pressure display
Programmable user database
|
No
Yes
|
| Tank pressure display
A/C system performance test
|
No
Yes
|
| Tank pressure display
Vehicle flushing adapter kit
|
No
Optional kit
|
| Tank pressure display
USB port
|
No
Yes
|
| Tank pressure display
Wi-Fi connection
|
No
Optional
|
| Tank pressure display
App connection
|
No
Optional
|
- User manual
- High + Low side service hoses (R134a)
- High + Low side quick couplers (R134a)
- 1x (empty) oil bottle PAG 250 ml
- 1x (empty) oil bottle POE 250 ml
- 1x oil drain bottle 250ml
- EU power cable
- Printer paper roll (P variants only)
- UK power cable (P variants only)
|
ACT1234: Flushing kit R1234yf & R134a – Installation kit
|
S P00 101 175
|
|
ACT1234-SFK: Flushing kit R1234yf & R134a
|
S P00 101 176
|
|
FLG220: Universal Leak Detector (H2, R134a, R1234yf)
|
S P00 101 990
|
|
RA16286B: Universal UV Dye 240 ml for R134a and R1234yf
|
1 692 600 144
|
|
ACT12686: HP Service Port Adapter – HP Extension Service Port R134a
|
S P00 101 344
|
|
ACT12689: LP Service Port Adapter – LP Extension Service Port R134a
|
S P00 101 826
|
|
5604052: Vacuum Pump Oil (1 bottle 600 ml)
|
S P00 100 086
|
|
5604052PACK: Vacuum Pump Oil (12 bottles 600 ml)
|
S P00 100 088
|
|
PAG 100 Oil Bottle (250 ml) for R134a systems
|
S P00 101 034
|
|
PAG 150 Oil Bottle (250 ml) for R134a systems
|
S P00 101 035
|
|
PAG 46 Oil Bottle (250 ml) for R134a systems
|
S P00 101 036
|
|
POE Oil Bottle (250 ml) for Electrical and Hybrid systems for R134a
|
S P00 101 586
|
|
PAG Oil Bottle (250 ml) for Electrical and Hybrid systems with SANDEN SPA2 (R134a/R1234yf)
|
S P00 101 828
|
|
Wi-Fi Connection kit for ACSxx3 unit
|
S P00 101 379
|
|
ACT1234-PIK: Printer Installation kit for ACS xx3 series
|
S P00 101 953
|
|
5607059: Printer paper
|
S P00 100 087
|
|
1×34-SH5: R134a 5 mt Service hoses kit for ACS xx3 unit
|
S P00 101 878
|
|
STRPK_134: Starter kit R134a (O’ring set; UV dye (250 ml); PAG 46 (250 ml); UV lamp with goggle; Safety kit)
|
S P00 101 416
|
|
