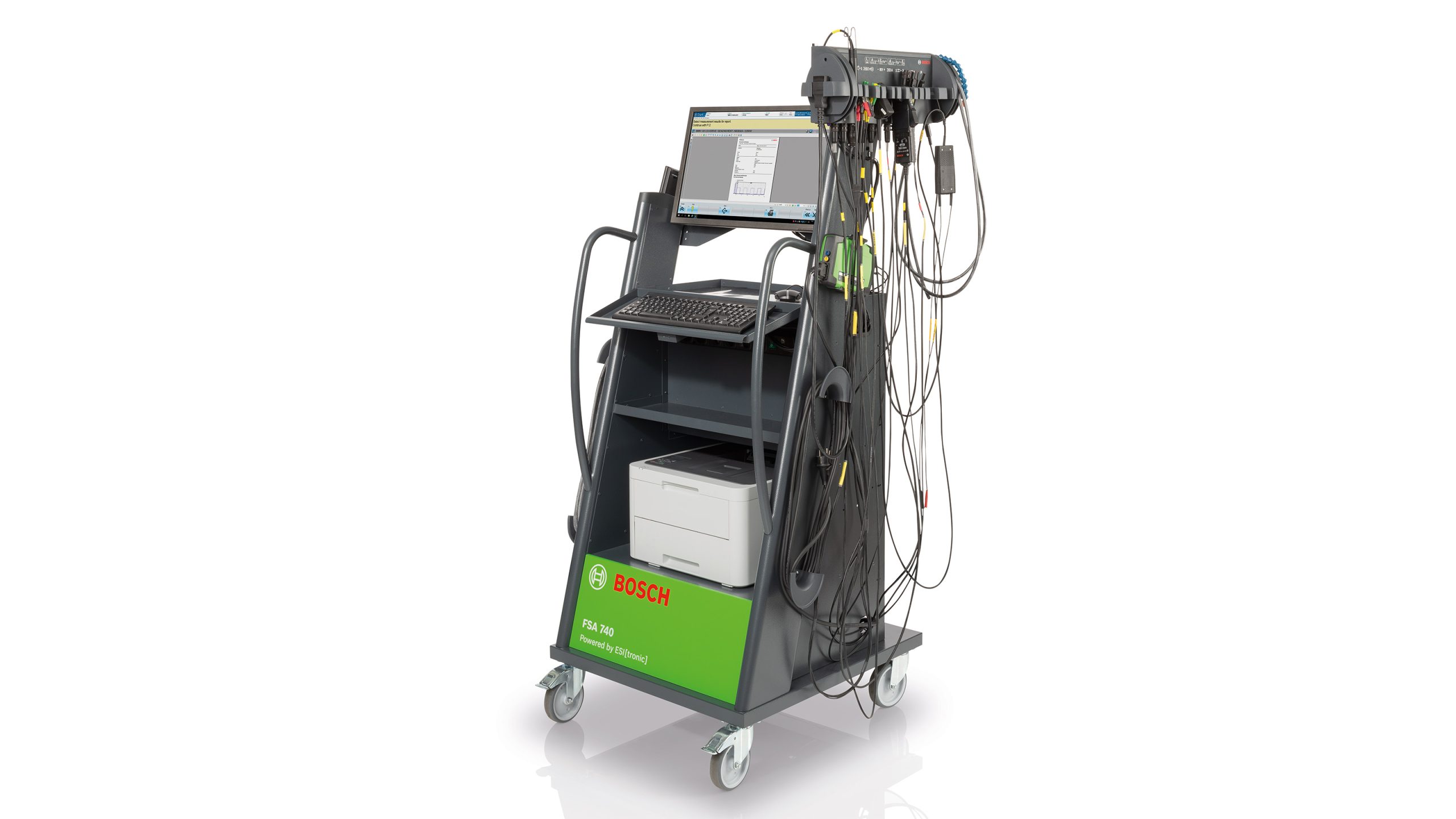

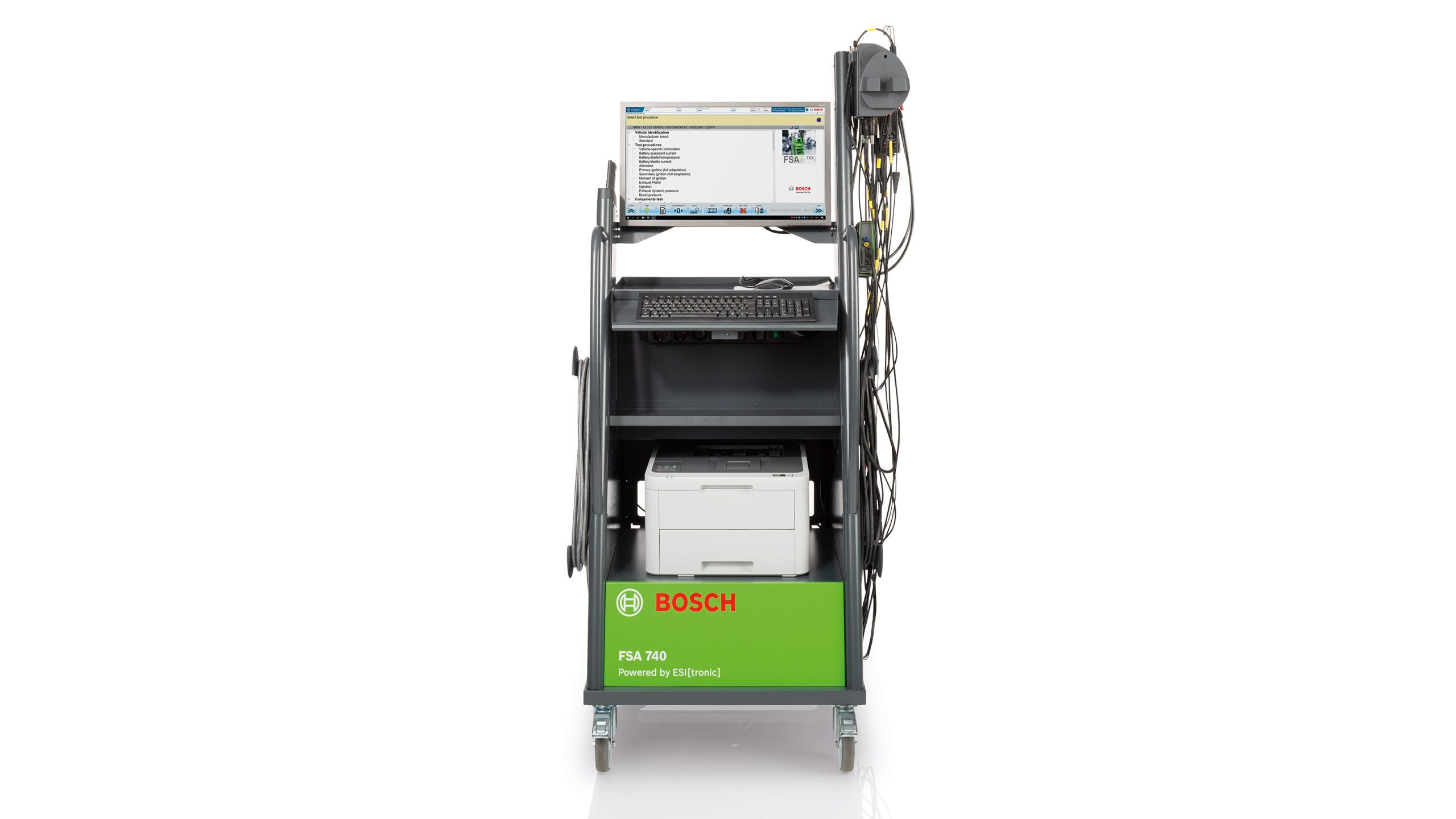

FSA 740

Premium diagnosis system: Everything a workshop needs for incredibly efficient diagnosis
In-situ component testing with 50 pre-set tests: Time-saving and accurate pinpointing of component problems boosts workshop productivity
24-hour battery discharge measurement: Extensive electronic measurement equipment helps with those difficult-to-locate and difficult-to-diagnose battery issues
Signal generator for testing installed sensors: Maximum efficiency for electrical and electronic component testing
Clear menu structure within SystemSoft[plus] software: Intuitive steps mean fast and efficient testing
Modular concept: Extend with ESI[tronic] diagnostic software, with modules from the BEA series for exhaust gas measurement, or with FSA 050 for enhanced testing of electric/hybrid vehicless
Wireless connectivity: Conntect with Bosch Connected Repair or other workshop networks to help you work more efficiently

2-Channel Oscilloskope	Scan rate 50 MS/s
2-Channel Oscilloskope Signal generator	Scan rate 50 MS/s 10 to 12 V with 4 signal forms, 1 Hz bis 1 kHz
2-Channel Oscilloskope Measuring range voltage	Scan rate 50 MS/s 0 to 60 V
2-Channel Oscilloskope Measuring range current	Scan rate 50 MS/s 0 to 1000 A
2-Channel Oscilloskope Measuring range resistance	Scan rate 50 MS/s 0 to 1 MΩ
2-Channel Oscilloskope Measuring range ignition voltage	Scan rate 50 MS/s up to ± 50 kV
2-Channel Oscilloskope Measuring range rotation speed	Scan rate 50 MS/s 100 to 12 000 1/min
2-Channel Oscilloskope Measuring range oil temperature	Scan rate 50 MS/s -20 °C to 150 °C
2-Channel Oscilloskope Measuring range air temperature	Scan rate 50 MS/s -20 °C to 100 °C
2-Channel Oscilloskope Measuring range pressure (atmospheric)	Scan rate 50 MS/s -800 hPa to 1500 hPa

Measuring range liquid pressure	0 to 1000 kPa
Measuring range liquid pressure Number of component tests	0 to 1000 kPa 60
Measuring range liquid pressure Number of guided test procedures	0 to 1000 kPa 18 (with set values)
Measuring range liquid pressure Number of concurrent viewable sensor signals	0 to 1000 kPa 6
Measuring range liquid pressure Storage of signal sequences	0 to 1000 kPa yes
Measuring range liquid pressure Power supply	0 to 1000 kPa 220 V AC – 240 V AC, 50 / 60 Hz, 700 W
Measuring range liquid pressure Operating temperature range	0 to 1000 kPa 5 °C to 40 °C
Measuring range liquid pressure Dimensions (H x W x D)	0 to 1000 kPa 1780 x 860 x 760 mm
Measuring range liquid pressure Weight	0 to 1000 kPa 91 kg

PC system in FSA

Operating system	Windows 10 IoT Enterprise
Operating system Processor	Windows 10 IoT Enterprise Intel® Pentium® G4560 @3.5 GHz (2 Cores / 4 Threads)
Operating system Memory	Windows 10 IoT Enterprise 8 GB DDR4, optional upgrade to 16 GB
Operating system Storage	Windows 10 IoT Enterprise 256 GB SSD

DVD Player	integrated
DVD Player Interfaces	integrated 6 x USB 3.0, 6 x USB 2.0, LAN 1000 Mbit, VGA, DVI-D, HDMI, Display Port
DVD Player WiFi	integrated IEEE 802.11 g,n; 2,4 GHz

Air temperature sensor	1 687 230 060
3 m extension cable for temperature sensor	1 684 465 517
Secondary sensor for pencil coil	1 687 224 987
Test cable set (transmitter and receiver)	1 687 011 208
Gasoline package (BEA 055 – for DE)	1 687 001 975
Diesel package (BEA 070 – for DE)	1 687 001 976
Gasoline package (BEA 050 – for AT)	1 687 001 865
Diesel package (RTM 430 – for AT)	1 687 001 577
Primary ignition package	0 688 100 017
Secondary ignition package	0 688 100 002
Fluid pressure kit (up to max. 10 bar)	1 687 430 008
FSA 050	0 684 010 050
