DAS 3000 S20 – Universal computer based calibration and adjustment device

DAS 3000 S20 – Universal computer based calibration and adjustment device
DAS 3000 S20 – Universal computer based calibration and adjustment device - Image 2
DAS 3000 S20 – Universal computer based calibration and adjustment device - Image 3
DAS 3000 S20 – Universal computer based calibration and adjustment device - Image 4
DAS 3000 S20 – Universal computer based calibration and adjustment device - Image 5
DAS 3000 S20 – Universal computer based calibration and adjustment device - Image 6
DAS 3000 S20 – Universal computer based calibration and adjustment device - Image 7
DAS 3000 S20 – Universal computer based calibration and adjustment device - Image 8
DAS 3000 S20 – Universal computer based calibration and adjustment device - Image 9
DAS 3000 S20 – Universal computer based calibration and adjustment device - Image 10
DAS 3000 S20 – Universal computer based calibration and adjustment device - Image 11
DAS 3000 S20 – Universal computer based calibration and adjustment device - Image 12
DAS 3000 S20 – Universal computer based calibration and adjustment device - Image 13
DAS 3000 S20 – Universal computer based calibration and adjustment device - Image 14

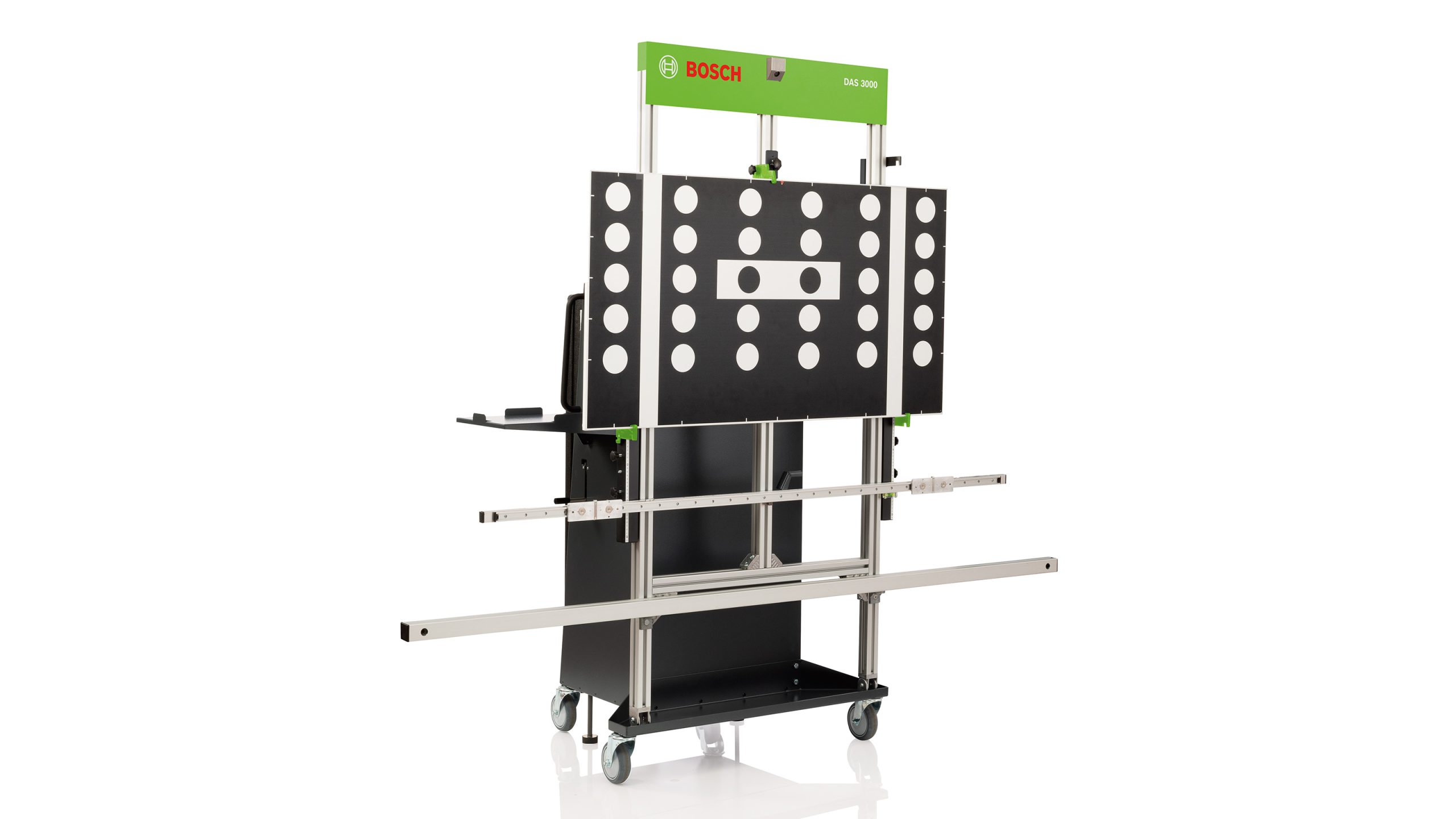

DAS 3000 S20 – Universal computer based calibration and adjustment device

Following OEM requirements for collision repairs, maintenance and servicing – the sensors of an advanced driver assistance system must be readjusted and calibrated accurately.

The DAS 3000 S20 conducts precise calibration of a front Radar and Camera.

With quick setup, innovative multi-function-fixture, robust but maneuverable design, and a broad selection of adjustable calibration targets, the DAS 3000 is ready for multiple applications within the automotive workshop. Bosch diagnostic scan tools as well as diagnostic software ESI[tronic] in combination with DAS 3000 ensure a proper calibration of the Active Cruise Control (ACC), Forward Collision Warning (FCW) and Lane Assistance system (LDW/LKA).

Request A Quote
YOUTUBE

Loading the video requires your consent. If you agree by clicking on the Play icon, the video will load and data will be transmitted to Google as well as information will be accessed and stored by Google on your device. Google may be able to link these data or information with existing data.

Learn more

For fast, reliable and future-proof calibration of front cameras and radar sensors of modern driver assistance systems (ADAS): The DAS 3000 is a scalable, computer based calibration and adjustment device for collision repair shops, fast fitters and workshop concepts.

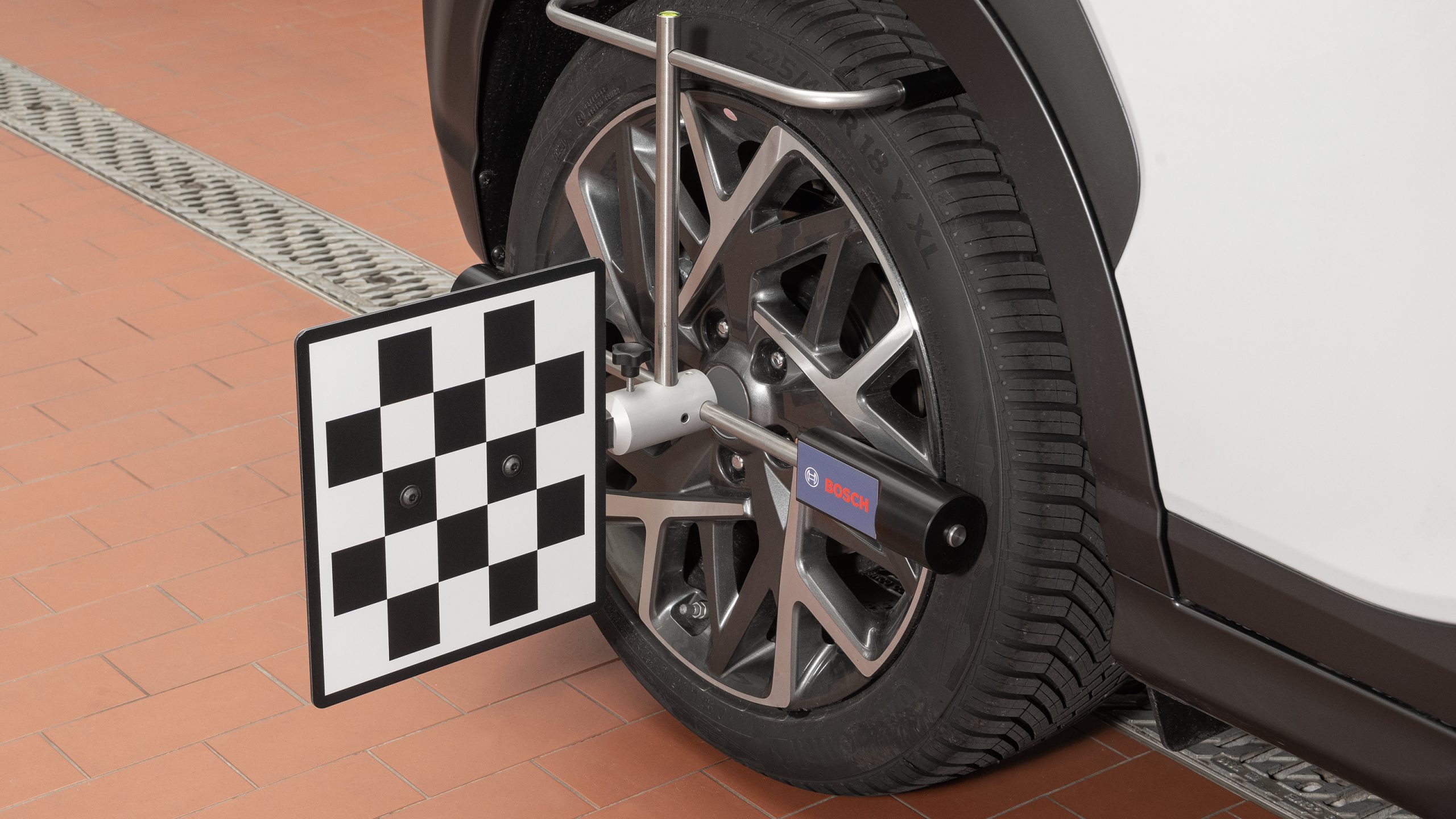

  • New wheel clamps for attachment in seconds and maximum accuracy

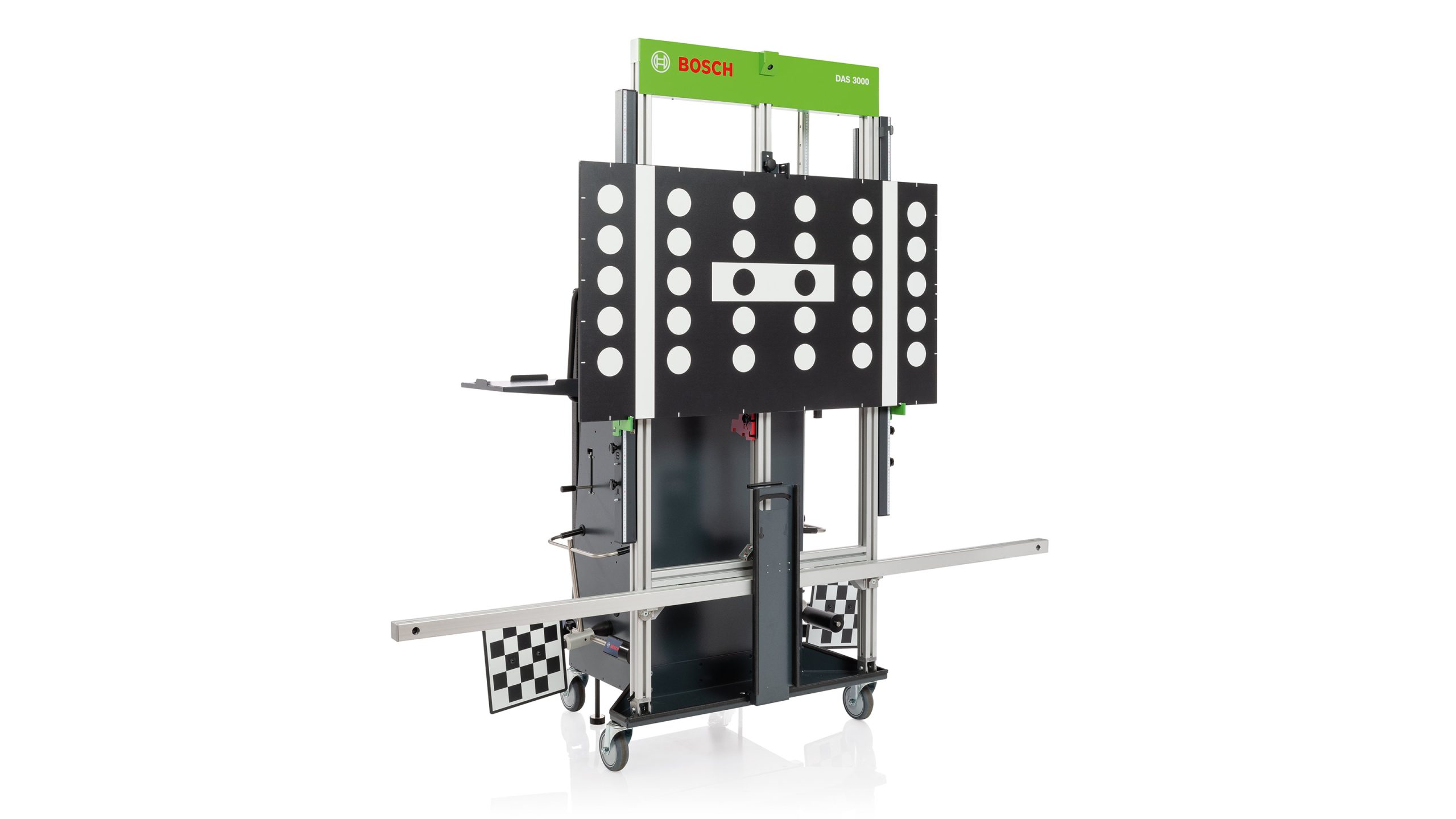

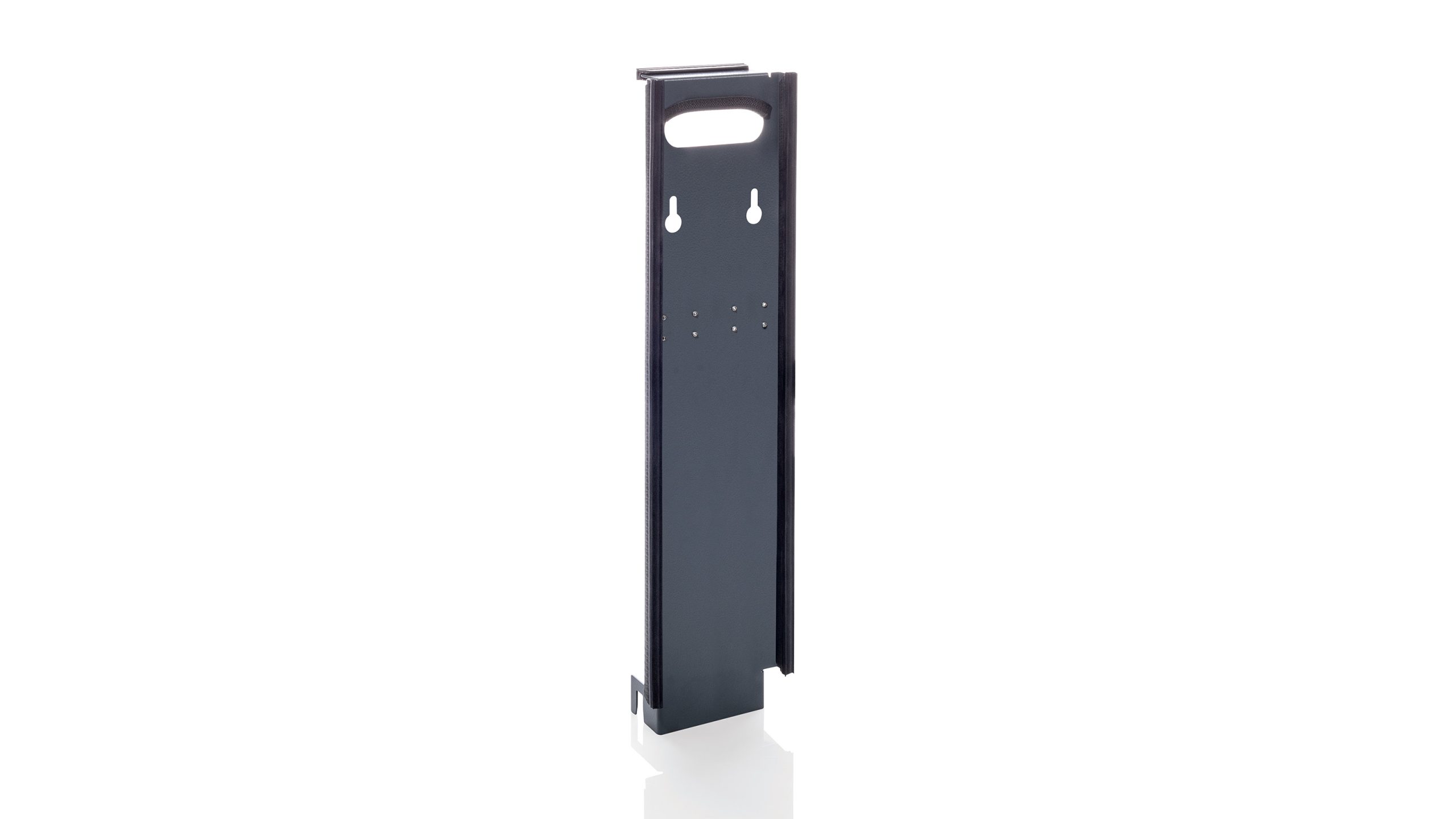

  • New bumper plate for precise distance measurement to the bumper
  • Printout which documents the correct alignment of the calibration device

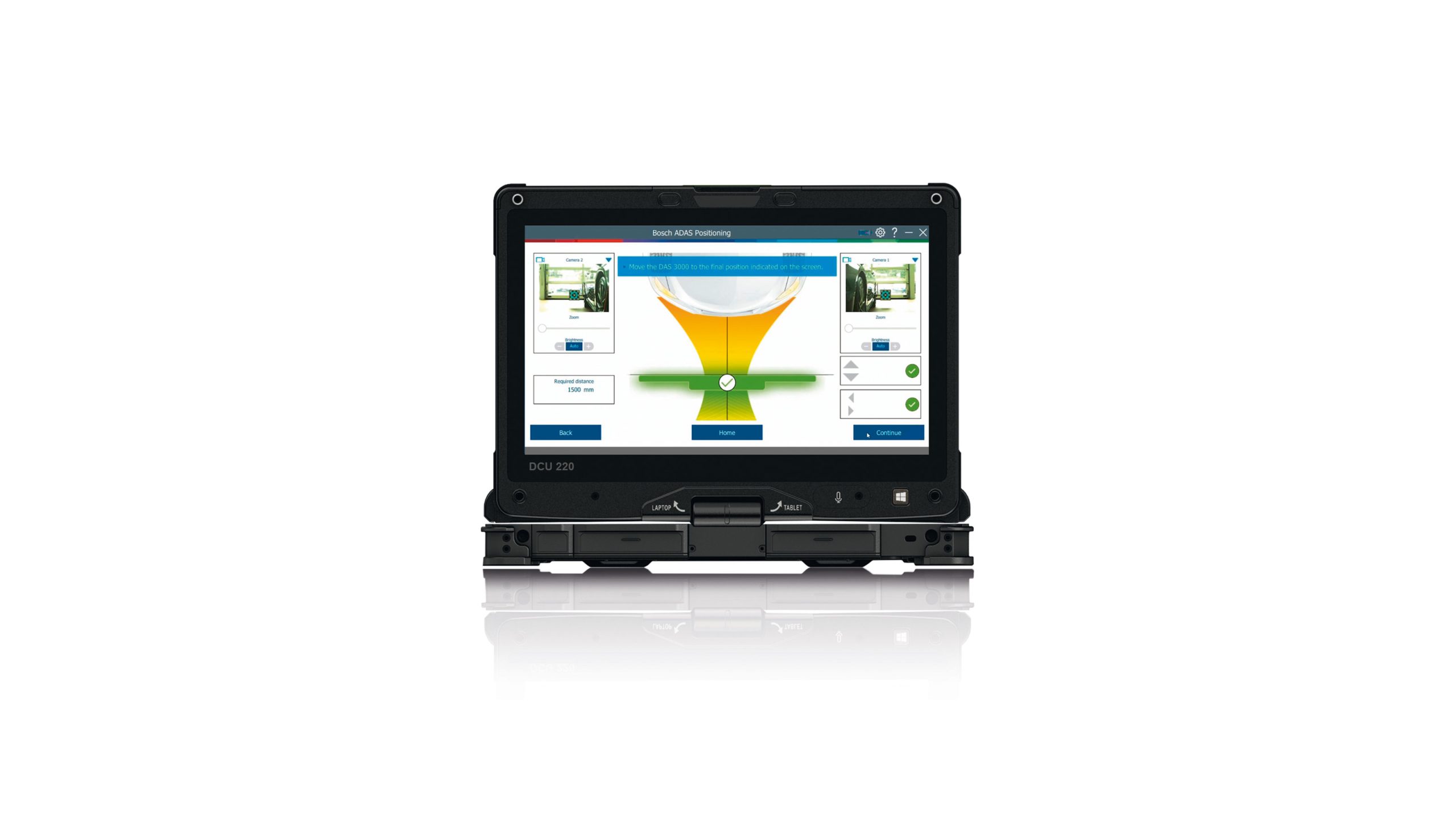

  • New positioning software for more efficient processes and intuitive operation
  • Controlling vehicle specific calibration easily with diagnostic software ESI[tronic] in combination with computed workflows and Target positioning: conform with OEM requirements, best efficiency and future proof (i.e. LIDAR)
  • Trolley with universal fixture designed for installation of multiple Target boards: rapid and accurate 1-point, 2-point and sequential calibrations
  • Scope of delivery includes a XL multi-function board: VW Group Camera calibration pattern and Radar reflector in one

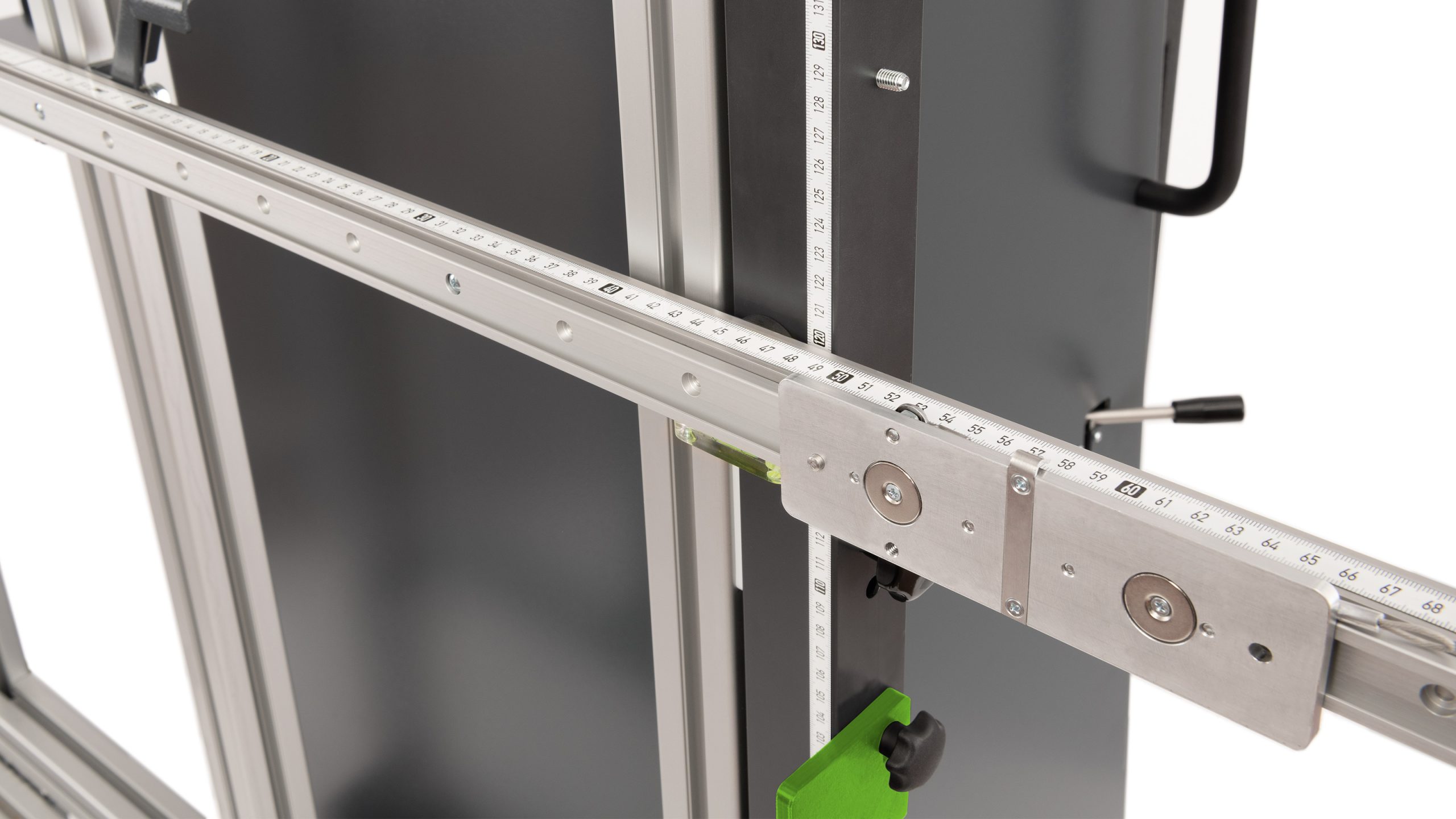

  • Versatility scope of delivery includes a precision measurement bar designed for magnetic fixation of components from Bosch Multi-Target-shop: For rapid and accurate placement of Target boards

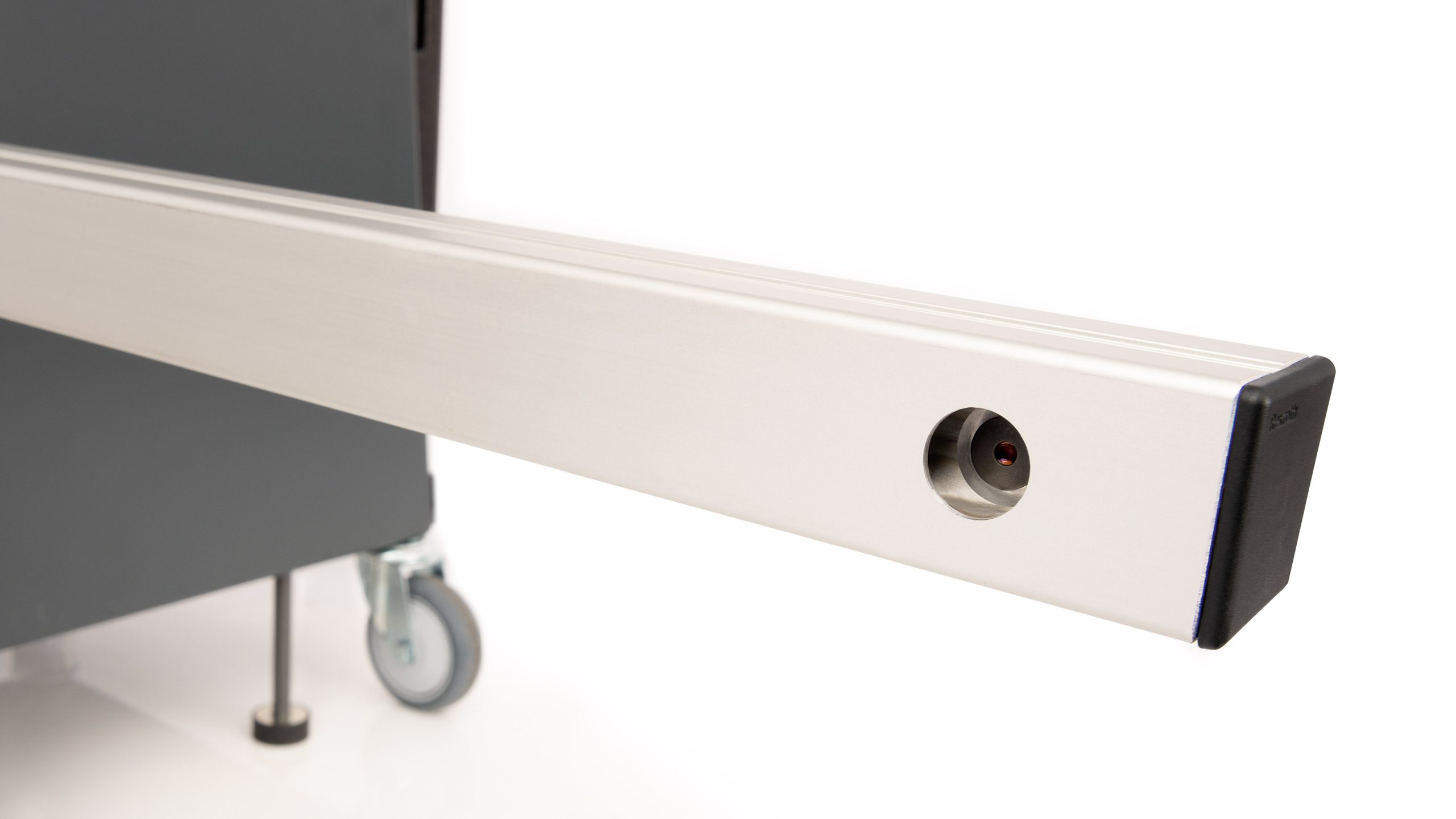

  • Integrated cameras and software workflows measure the distance to the vehicle and line-up to thrust line (driving axis) fully digital: guarantees a fast and accurate positioning including traceability

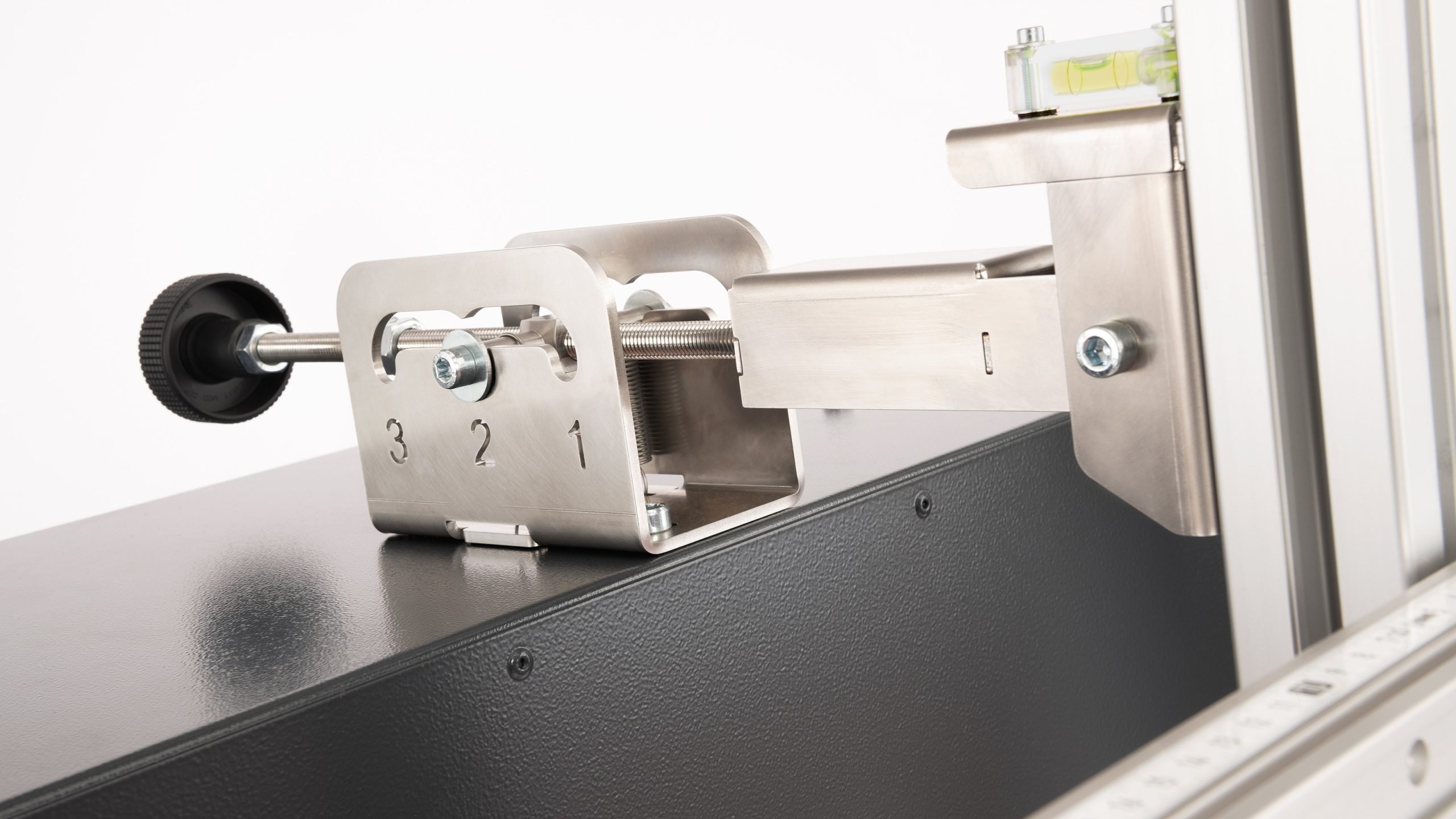

  • Universal fixture with integrated Pitch angle fine adjustment on top of device: For comfortable and ergonomic adjustment
  • Universal fixture with integrated height offset and roll angle adjustment: efficient pre-setting for dedicated working bays (i.e. above floor installed lifts)
  • XL Multi-function board covers all OEM Radar mounting heights and requires just a lateral rough positioning: simplifies the setup significantly, best liability.
  • Universal fixture offers Radar 3-point calibration (-2° / 0° / +2°): very ergonomic as operator can operate Diagnostic software and tiling mechanism in the same action range.
  • Robust trolley with extra-large wheels: For easy maneuverability and flexibility in busy workshop environments

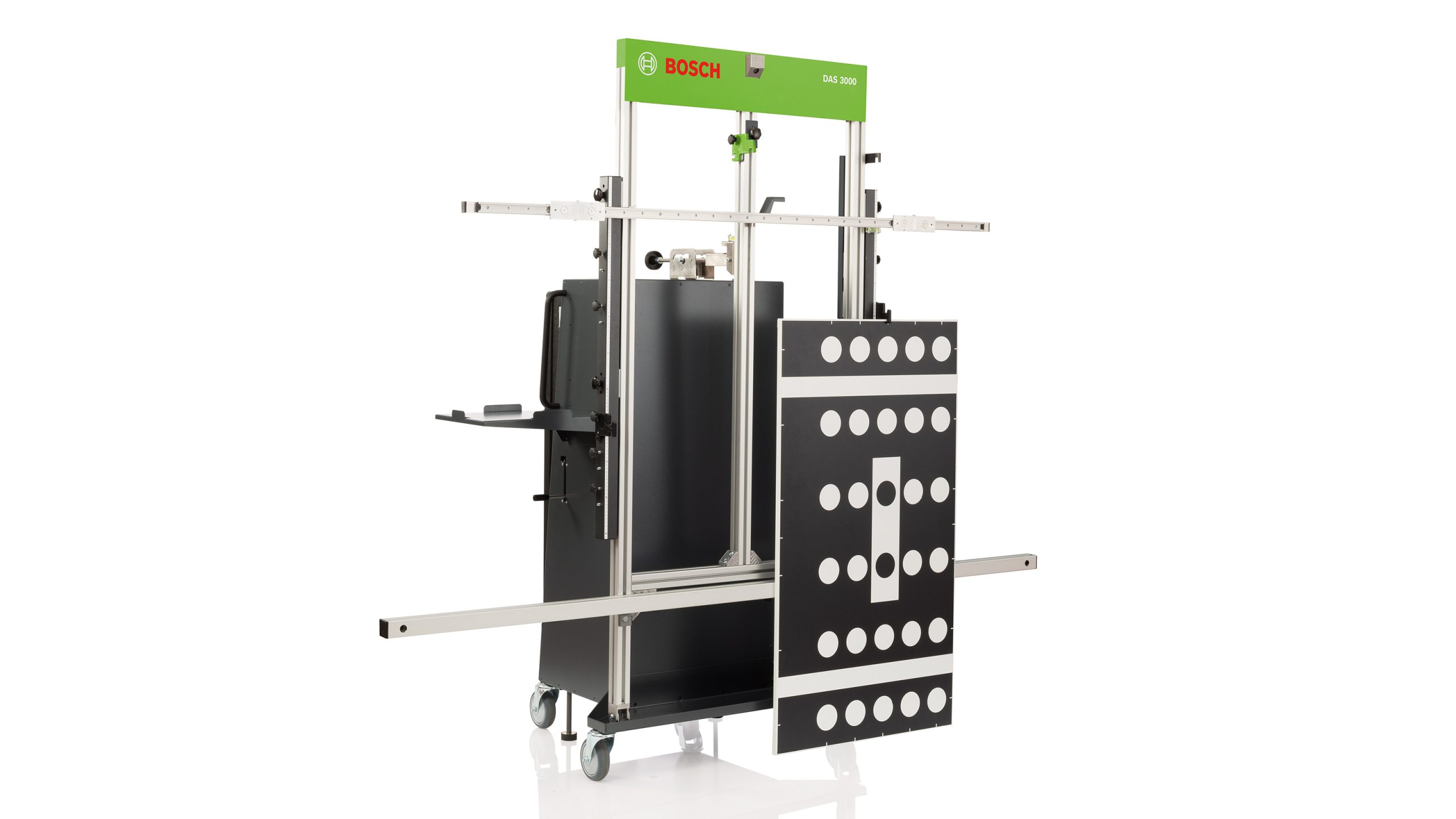

Front Radar calibration

Coverage of vertical radar mounting positions on
vehicle:
260 –1,000 mm
Largest offset of lateral mounting position:
+/- 750 mm

Front camera calibration with Multi-Target-Shop

Offset-adjustment for measurement
platforms:
0 – 300 mm
Height adjustment measurement bar:
700 mm – 1.850 mm
Traveling range target carrige:
+/- 800 mm
Predefined fixation of brackets holding XL-Target (Multi-Function board):
A) VW/Audi* car (1,200 mm) and Subaru Typ 3
B) VW/Audi* car (1,300 mm) and Subaru Typ 2
C) VW/Audi* SUV (1,400 mm) and Alfa-Romeo
D) VW/Audi* Transporter (1,850 mm)
*VW group

Working range computer vision positioning

Track width of vehicle:
1,650 mm – 2.200 mm
Distance measurement:
0,4 – 6 m
Virtual center line:
max. 6 m
Measurement driving axis:
max. 8 m
Wheel clamping range:
13 – 22”
Extension for clamping range (optional):
23“– 28“

Calibration device

Dimensions H x W x D:
2,090 mm x 2,030 mm x 730 mm
Net weight:
approx. 120 kg

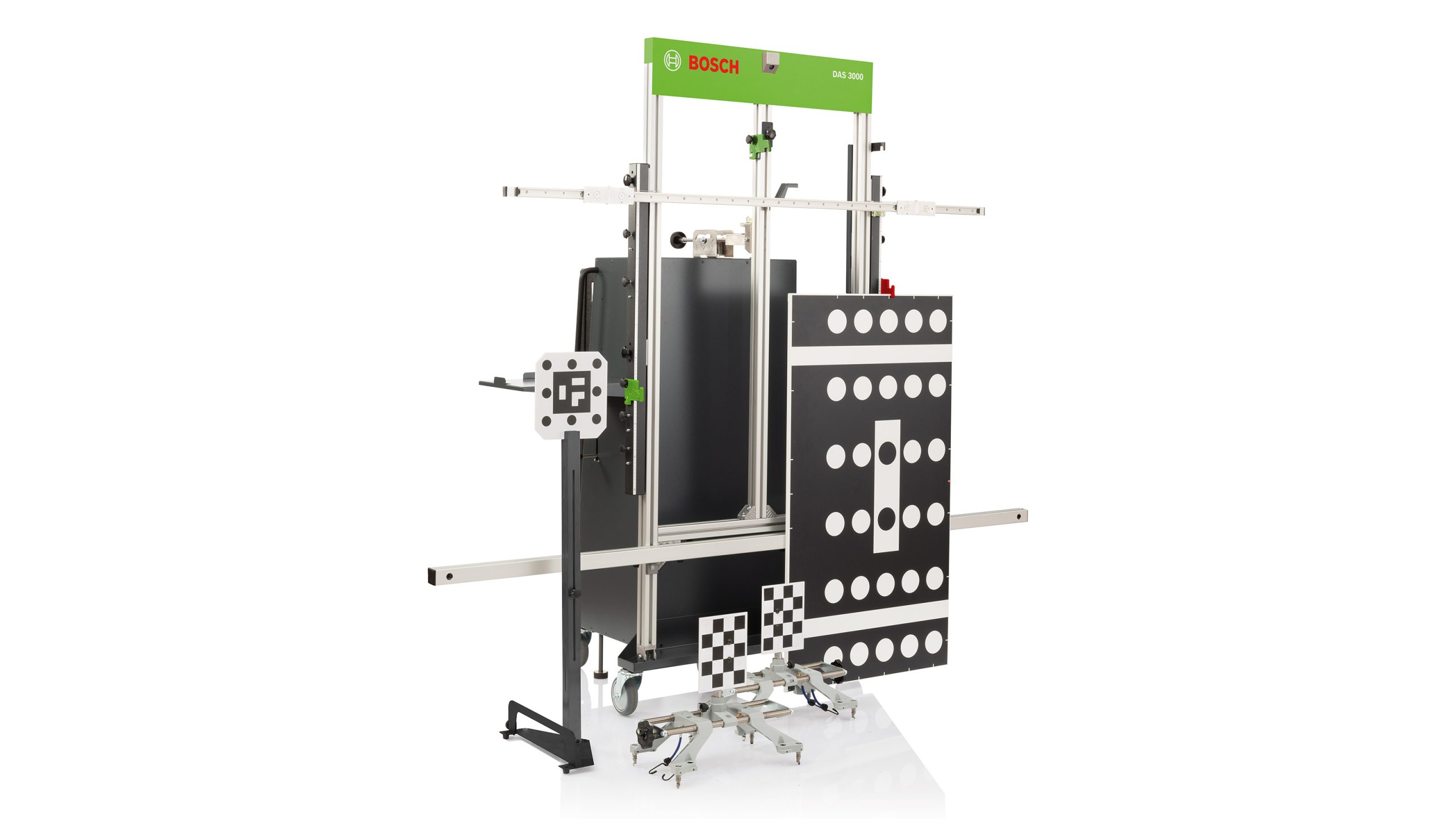

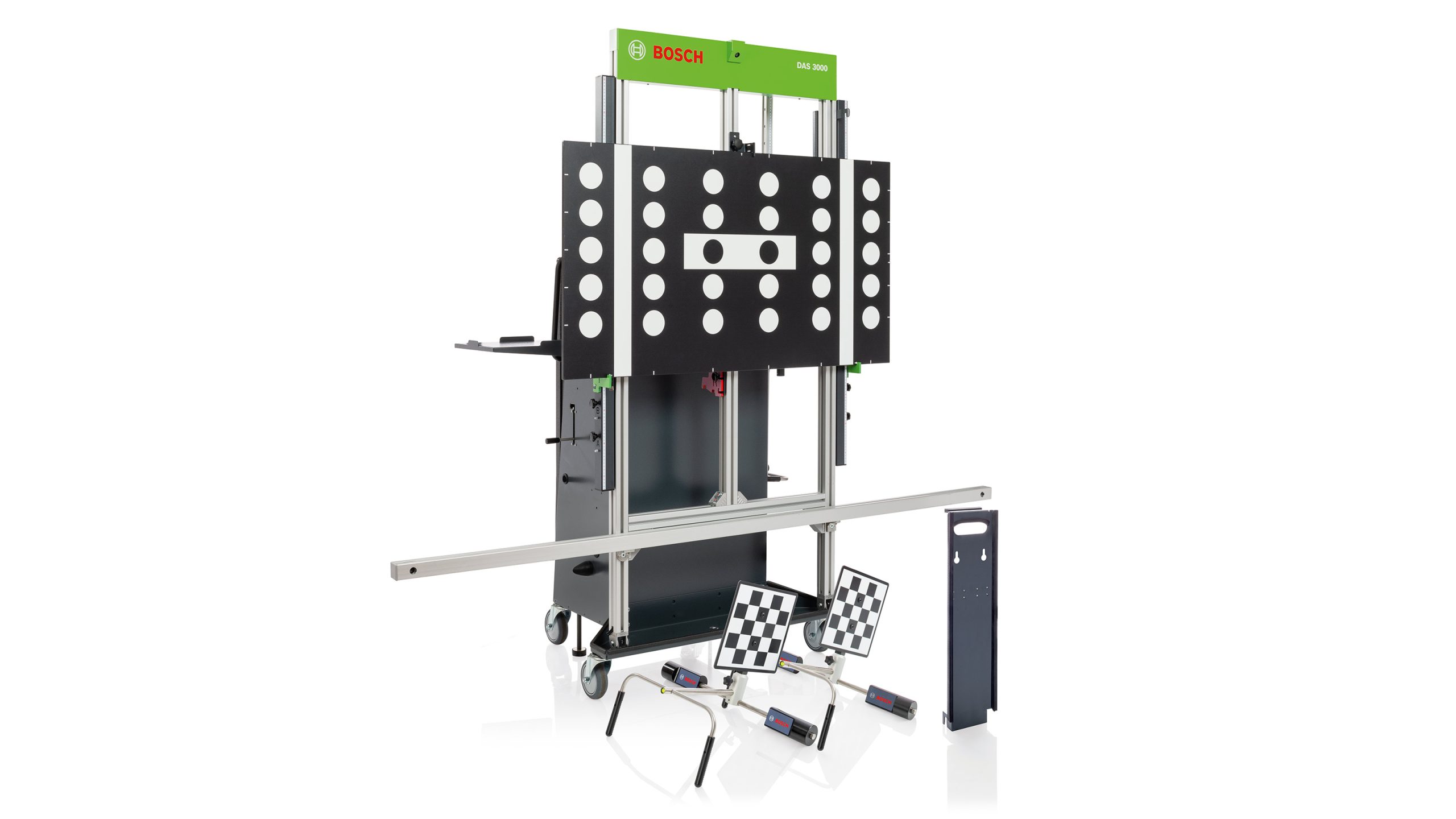

  • Calibration device
  • XL multi-function board with VW pattern and radar reflector
  • Distance measurement aid (post with reference panel)
  • Camera-Set “Driving axis”
  • Universal wheel clamp with target (Set)
  • Software package ADAS Positioning (download also via DDM)
  • Bumper plate

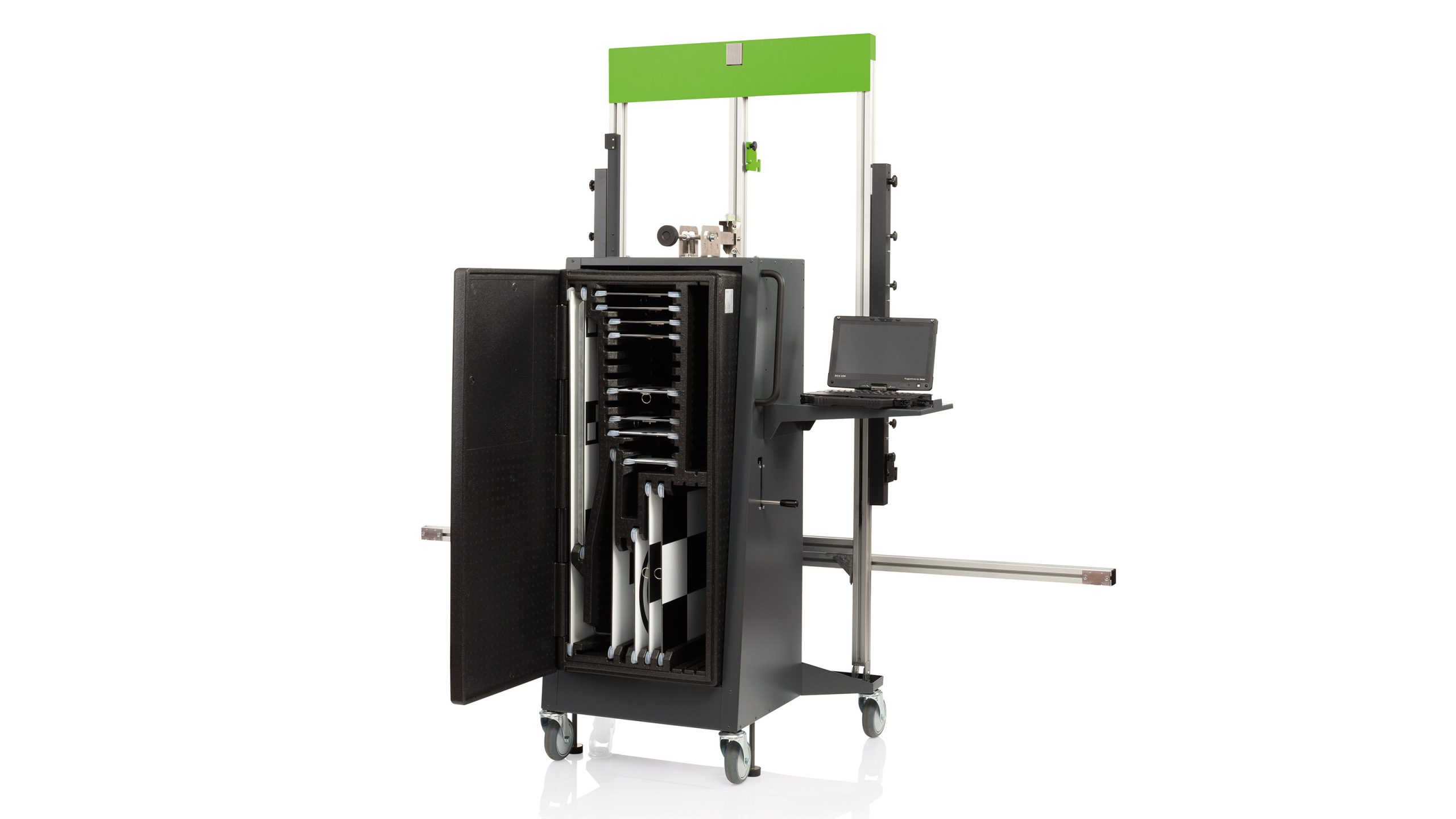

Multi-Target-Shop
Starter kit
optional

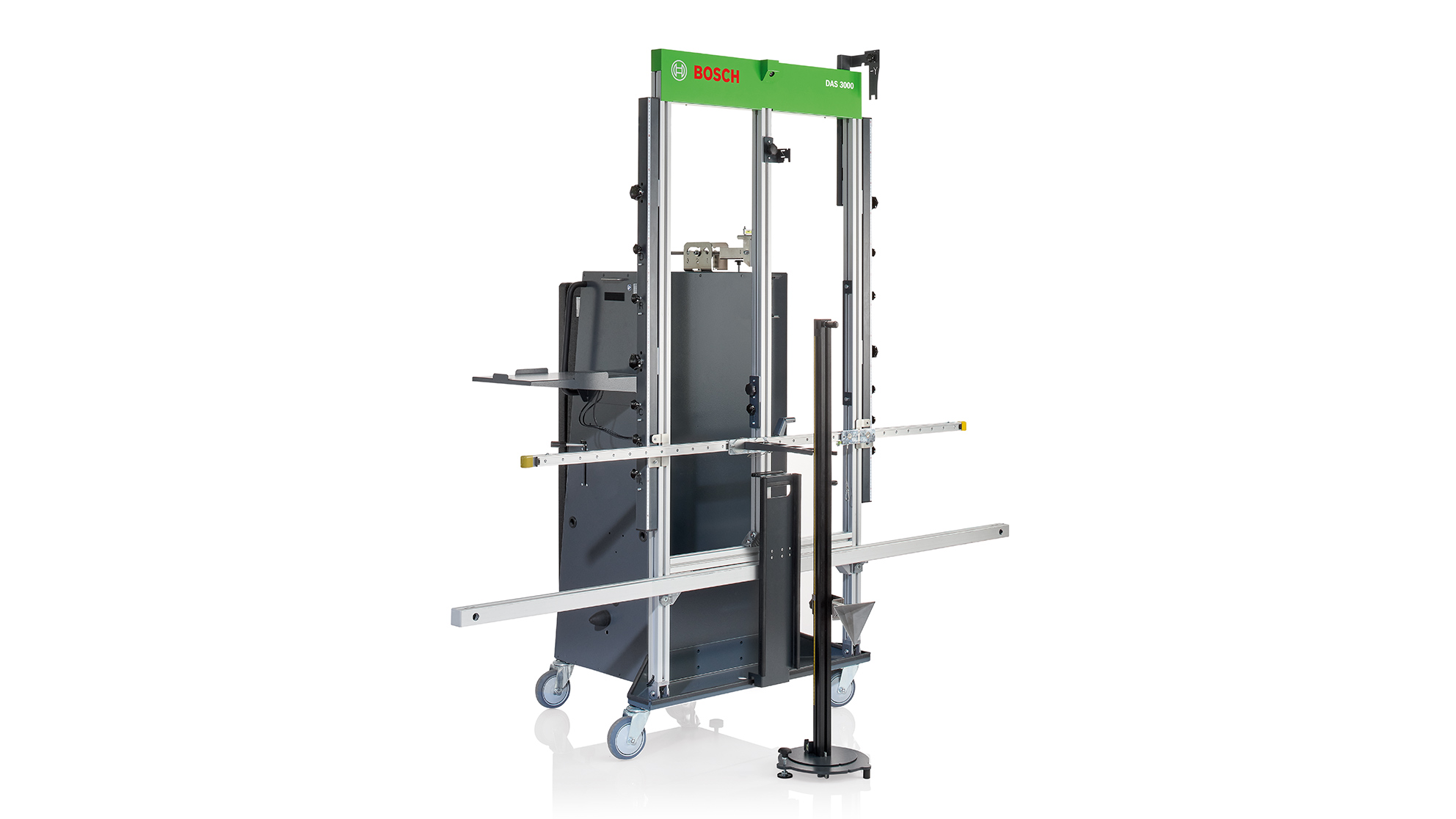

CTA 120 – Corner Reflector for calibration of radar sensors
1 688 132 058

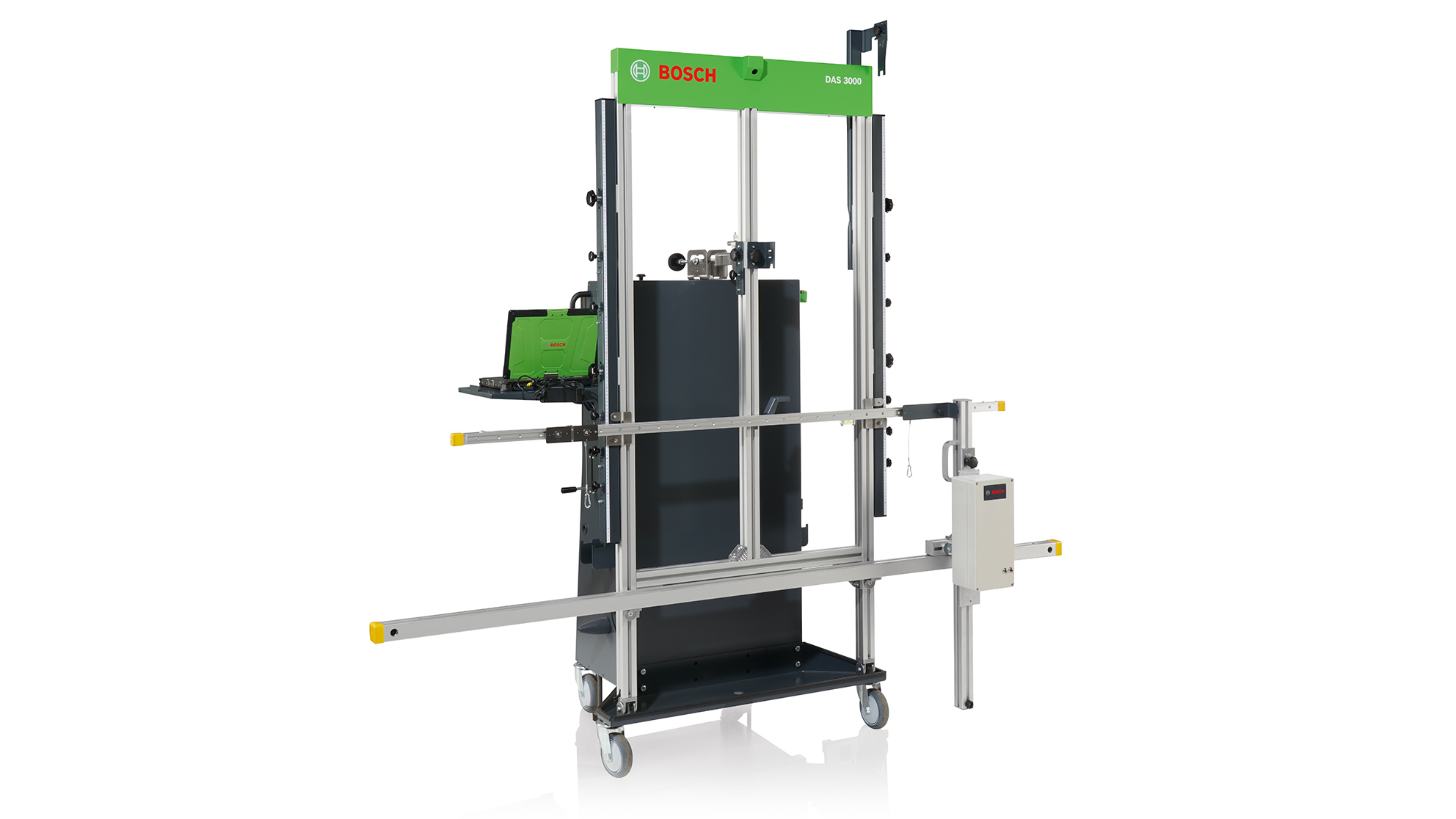

CTA 110 – Doppler Simulator for rear and side radar calibration
1 688 132 056
Camera “virtual vehicle center line”
1 687 001 651
Brackets for Alfa-Romeo (magenta) calibration with XL Multi-function board
1 685 720 383
Distance measurement aid (post)
1 681 098 009
Reference target for distance measurement aid
1 681 098 012
Segment Brochure (PDF)
> Download
Product Brochure (PDF)
> Download
DAS 3000 Facelift (PDF)
> Download
DAS 3000 Help Center
> Learn more
Manuals, updates and information
> Learn more
