- Micro-load test procedure: Produces fast and reliable measurement results
- Large LCD screen: For clear, legible results which can be referenced quickly
- Guided menus in 25 languages with 3-button operation: Easy and intuitive to use
- EN, EN2, DIN, SAE, IEC, JIS and MCA testing norms: For versatile testing of 6 V and 12 V batteries, and the 12 V and 24 V starter charging systems
- Integrated printer presenting state of health and state of charge percentage: Provides the customer with clear and easy to understand graphical printouts for their records
- 1,8 meter testing cable: For excellent coverage around the vehicle in the workshop
- Only 1100 g with robust housing: Provides easy handling and durability for daily use
- Detachable test clamps: For service or replacement
AUTOMOTIVE DIAGNOSTIC EQUIPMENT
SALES & SERVICE
SALES & SERVICE
BAT 115 – battery tester, starting and charging system
BAT 115 – battery tester, starting and charging system
Offering a wide-range of testing norms, such as EN, EN2, DIN, SAE, IEC, JIS and MCA, the versatile BAT 115 battery tester tests 6 V and 12 V batteries from 40 – 2000 CCA, including lead-acid, EFB, Gel and AGM (flat and spiral) using a micro-load test for proven accurate results while also offering the ability to test 12 V and 24 V charging systems with a diode/ripple test.
Lightweight and robust, with its large LCD display and intuitive operation, the BAT 115 battery tester is an efficient and cost-effective choice for daily use in busy workshop environments.
| Battery nominal voltage | 6 V / 12 V |
| Battery nominal voltage
Application
|
6 V / 12 V
Passenger car, light commercial vehicle, motorcycle, marine
|
| Battery nominal voltage
Battery types
|
6 V / 12 V
Lead-acid, EFB, Gel & AGM (flat and spiral)
|
| Battery nominal voltage
Test standards
|
6 V / 12 V
EN, EN2, DIN, SAE, IEC, JIS, MCA
|
| Battery nominal voltage
Battery size (in acc. with CCA)
|
6 V / 12 V
40 – 2000 A
|
| Battery nominal voltage
Printer
|
6 V / 12 V
Integrated thermal printer
|
| Starting/charging system test | 12 V / 24 V |
| Starting/charging system test
Number of Menu languages
|
12 V / 24 V
25 languages
|
| Starting/charging system test
Dimensions (W x H x D)
|
12 V / 24 V
approx. 250 x 130 x 60mm
|
| Starting/charging system test
Weight approx.
|
12 V / 24 V
1100 g
|
| Starting/charging system test
Operating temperature
|
12 V / 24 V
0 °C – 40 °C
|
| Starting/charging system test | 12 V / 24 V |
| Starting/charging system test
Number of Menu languages
|
12 V / 24 V
25 languages
|
| Starting/charging system test
Dimensions (W x H x D)
|
12 V / 24 V
approx. 250 x 130 x 60mm
|
| Starting/charging system test
Weight approx.
|
12 V / 24 V
1100 g
|
| Starting/charging system test
Operating temperature
|
12 V / 24 V
0 °C – 40 °C
|

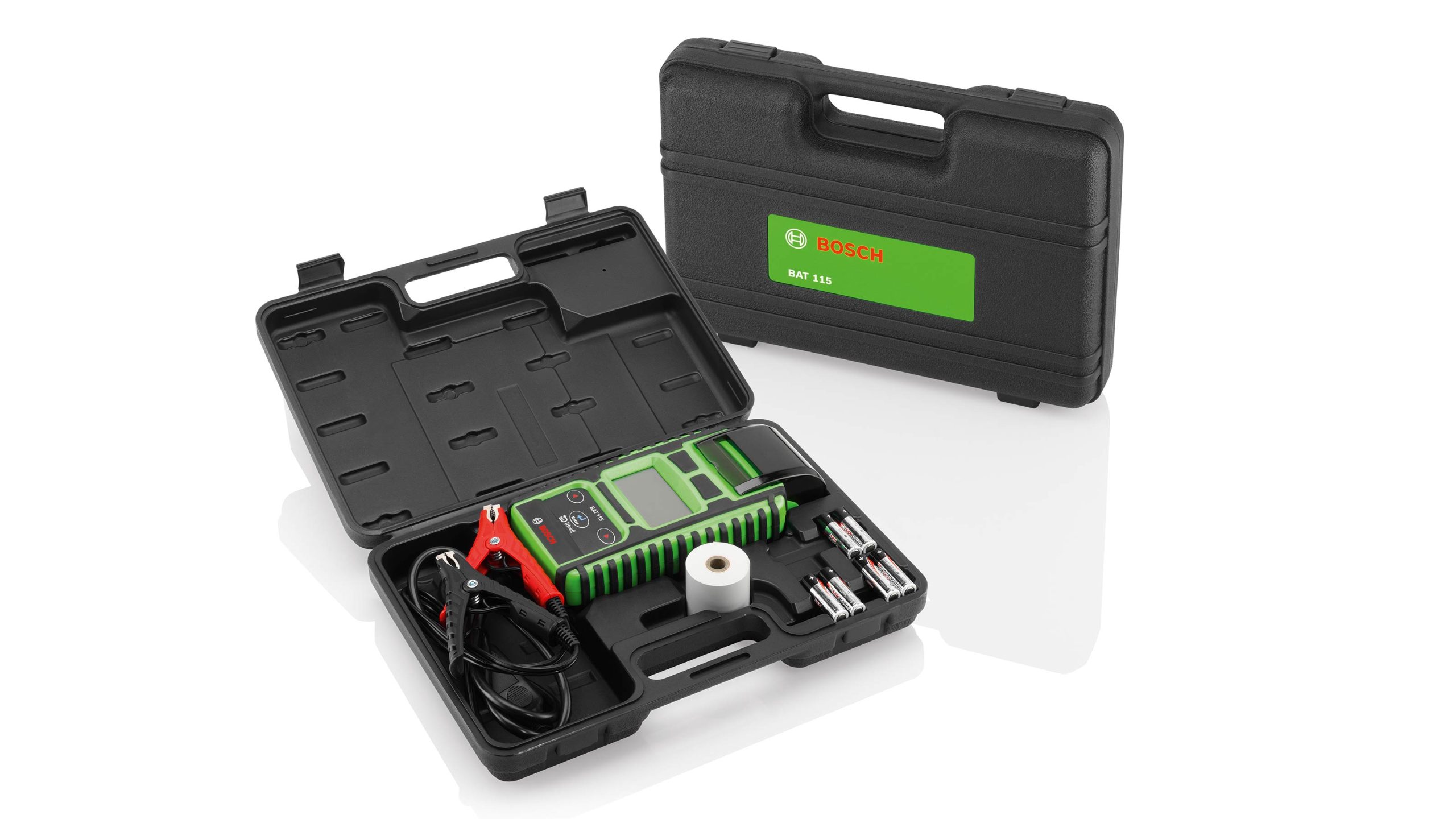

- BAT 115 tester unit
- storage case
- detachable test clamps (1 681 355 004)
- 6 AA batteries
- paper roll
- operating & safety instructions on CD
|
Printer paper
|
1 681 420 028
|
|
detachable test clamps
|
1 681 355 004
|
|
Segment Brochure (PDF)
|
|
|
Fact Sheet (PDF)
|
|
|
Manuals, updates and information
|
