Bosch FWA 4630

Mfr# 1690700002

Category: Wheel Alignment

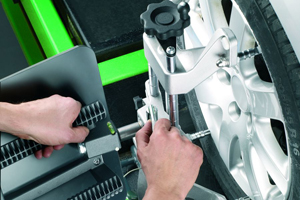

The FWA 4630 is the top range wheel aligner with real 3D technology. With it's fast measuring time and the possibility of rolling runout compensation the FWA 4630 is one of the fastest in the market. Also the fact that it is usable on various lifts with no need to attach it permanently makes it space saving and mobile.

£9995.00

ex VAT

£11994.00

inc VAT

buy FWA 4630 now

FWA 4630

In independent workshops and tyre service centers, wheel alignment is often offered as a service for the purpose of customer binding. In many cases, a tyre change is sufficient reason for wheel alignment. This can be done at the same time without high additional costs. Adjustment and repair work resulting from wheel alignment ensures traditional turnover in the workshop.

In focus with the new FWA 4630

Sort setup times, simple operation and fast results characterise the new wheel alignment system FWA 4630 from Bosch.

Drive up:

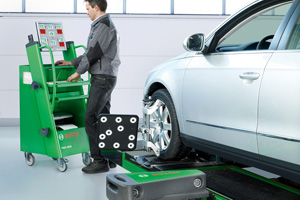

The indispensible run out compensation can now be carried out with total precision in no time at all. Following setup, you simply drive the car into the correct position. Tedious and dangerous pushing on the platform is a thing of the past.

Measure:

A new dimension in wheel alignment. The FWA 4630 represents a new generation in wheel alignment technology and offer everything that the modern workshop could desire. Fast, precise measured data acquisition of toe, camber, thrust line, axle and wheel offset and, following 20° steering routine, caster and kingpin angle.

Done:

In only seven minutes! In the shortest possible time and with the help of various measuring programs, workshops have all information related to the chassis as well as printable measured results that nowadays form the basis of a competent customer discussion.

FWA 4630: The advantages

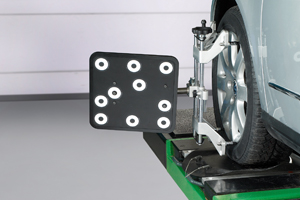

  • Set up times reduced considerably - Simple positioning of the light measurement boards and sensor heads saves you valuable time!
  • Fast measurement combined with high accuracy. - Fast rolling run out compensation and consistently accurate on all four wheels simultaneously without having to the lift the vehicle.
  • Competency based on precise measuring technology - The unique 3D measuring technology of FWA 4630 permits automatic, high precision measurements. High reproducibility of the results guarantees reliability and competence even in the case of repetitions.
  • Designed for tough daily workshop operation - The robust and ergonomic design is geared towards practical handling in daily workshop operation right up to the finest detail.

Competence and precision

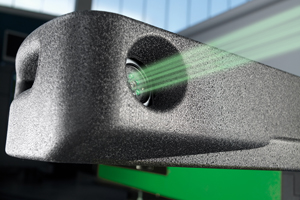

High accuracy is guaranteed right from the start through rolling run out compensation. The measurement is carried out according to 3D measuring technology using two precise CCD cameras per wheel. The integrated reference system as well as camber and inclination pendulum in each sensor head ensure reliable, reproducible measured results without complicated and error-prone calibration. Thanks to reference system, the sensor heads of the FWA 4630 do not even have to be fixed to a lifting platform.

Mobility for the complete system

Lifting platforms designed for wheel alignment simply need to be fitted with special support brackets for the sensors. This means that an FWA 4630 system can be used on more than one lifting platform in the workshop if required. It is ideal for use in a wheel alignment pit, with the sensors simply placed on the floor next to the vehicle. The reference system uses a gravitational force reference to guarantee correct results.

Weight and dimensions
Trolley with sensor head 1520 x 1180 x 770 mm
Trolley without sensor head 1520 x 880 x 770 mm
Sensor head 150 x 370 x 650 mm
Sensor head weight approx 9.3 kg
Total weight of trolley approx 110 kg
Power unit
Input voltage 110 to 240 V AC (10A)
Input frequency 50-60 Hz
Output 0.5 Kw
Mandatory accessories Order number
Filler pieces for turntables (four required) 1 683 391 224
Cable set, pit 1 690 701 028
Cable set, four-column lift 1 690 701 029
Cable set, scissor lift 1 690 701 030
Lift bracket, top-floor lifts 1 690 701 020
Lift bracket, inground lifts 1 690 701 018

Robust, safe and mobile use in the workshop

  • Ergonomic, bump and shockproof design with resilient plastic housing (made of extruded polypropylene): Provides safety for mechanics, vehicle and measuring technology.
  • Resistant to oils and fuels.
  • The sensitive sensor heads are replaced by simple measurement boards. No more need for electronics at the wheel.
  • The integrated camber and inclination pendulum in every sensor head ensures an absolute reference for gravitational force and consequent high reproducibility of the measured values.
  • The built-in patented reference system makes mobile use of the sensor head possible.
  • Little space requirement.

A large amount of data and simple operation.

The vehicle database covers 25,000 vehicles. The User can extend it by individual vehicle specified data.

Regular updates (optional) ensure that new models are integrated quickly. Extensive setting assistances are available for correctint the steering geometry. The well laid-out user interface uses functions typical for Windows to make operation very easy.

Users can select between a guided routine before and after adjustment, a quick measurement without steering swing or random measurement for targeted testing of individual measured values.

One for all

With the correct accessories, you can now use a single wheel aligner to measure all passenger cars and light commercial vehicles. Even the standard measurement boards cover all vehicles up to a 430cm wheelbase.

The right cable set are available for every testing station

Three optional cable sets are available for the FWA 4630 depending on the existing testing station. Can be fitted in scissor lifts, four-column lifts or pits.

Clear the stage for wheel alignment

Precise installation is guaranteed by the lift fastening elements (special accessories):

  • Type 1 for practically all top-floor lifts
  • Type 2 for inground lifts

When placing your order for the installation of the mount, please specify the manufacturer and type and designation of your lift.

Equipment supply

Sensor heads (2 pieces), switch, hub, test box, trolley, 17" monitor, multilanguage PC, printer, program, specified data (cars and vans), dongle (USB), licenses, standard boards (4 pieces), steering wheel lock, brake pedal lock.

Special Accessory Order number FWA 43xx/44xx FWA 4630
Multi-Quick clamps 1 unit 1 690 501 250
Remote control set with transmitter and receiver 1 690 321 003
Romess inclination measuring device (for manual data input) 1 693 770 002
Mercedes-Benz toe presser bar 1 693 600 001
Distance bolts for Mercedes-Benz and BMW for the multi-quick clamp
Set with 5 units for one clamp
1 690 401 019
Adapter for Porsche rims for multi-quick clamps 1 690 402 005
Ballast bags
20Kg
10Kg
5Kg

1 693 740 003
1 693 740 002
1 693 740 001






VAG tool and bridge for four-link front-axle suspension adjustment 1 690 401 039
Universal quick-action clamps up to 21" 1 690 311 001
Rubber cover for turntable 1 690 402 001
Short sliding plate 1 690 401 003
Long sliding plate 1 690 401 004
Drive-on ramps for turntables and sliding plates 2 units 1 690 401 008
Plastic-coated clamping claws for aluminum rims
4 units for a universal clamp
1 690 311 003
Mechanical turntable ALU standard 1 690 501 001
Mechanical turntable 1 690 311 002 -
Electronic turntable ALU precision 1 690 401 013 -
Electronic turntable with connecting line 1 690 321 018 -
Extension arm for quick-action (up to 23") and multi-quick-action clamps (up to 26")
Set of 12 units
1 690 401 032 -
Plastic-coated aluminum sleeves for multi-quick clamps
Set of 12 units
1 690 401 010 -
Calibration device 1 690 401 056 -
Precision spoiler adapter 1 690 401 014 -
Spoiler adapter - 50 mm 1 690 401 005 -
Spoiler adapter - 100 mm 1 690 121 001 -
FWA 4630 Inlay for height compensation 1 690 702 082 -
FWA 4630 Step-bracket Set of 2 1 690 701 045 -
FWA 4630 Storage trolley for wheel brackets / boards 1 690 701 041 -
FWA 4630 Wall hook for wheel brackets /boards 1 690 701 040 -
FWA 4630 Measuring board for long wheelbase set of 2 1 690 701 012 -
FWA 4630 Ramp for passenger cars 1 690 701 052 -
Wheel brackets (Universal clamp, set of 4 pieces) 1 690 311 010 -
Cable set, pit 1 690 701 028 -
Cable set, four-column lift 1 690 701 029 -
Cable set, scissor lift 1 690 701 030 -
English keyboard 1 690 323 018 -
Lift adapter swivel foot, long (set of 2 for one lift) 1 690 701 020 -
Lift adapter swivel foot, short (set of 2 for one lift) 1 690 701 047 -
