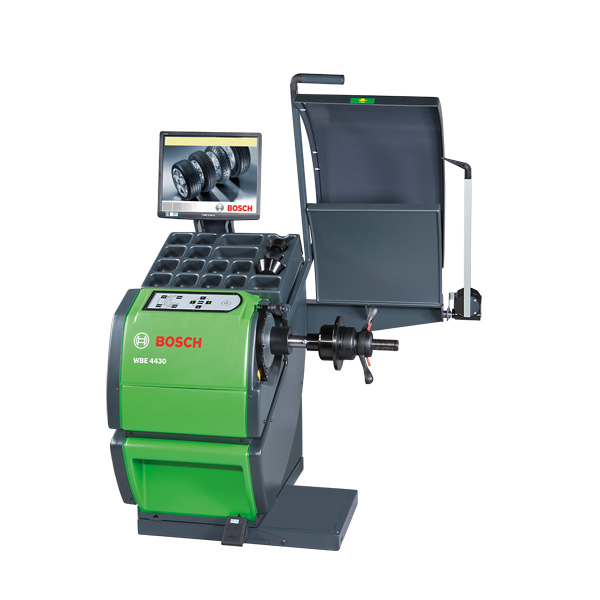

Bosch WBE 4435
Mfr# 1694100227
Category:

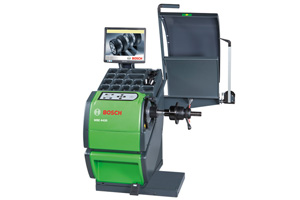

Movable TFT monitor, membrane keyboard, foot pedal brake, middle centering flange with pneumatic quick-clamping nut (actuated via foot pedal), 2 electronic feeler arms and weight sticking system
£4395.00 ex VAT |
£5274.00 inc VAT |
|
Technical data |
WBE 4435 |
Rim diameter |
12" - 30" |
Rim width |
1" - 21" |
Max. wheel diameter |
1,200 mm |
Maximum wheel weight |
80 kg |
Balancing speed (60Hz / 50Hz) |
250 / 210 rpm |
Weight |
199 kg |
W x H x D in mm |
1,194 x 1,686 x 1,600 |
Highlights:
- Placement surface spread over two levels
- Electronic scanning and data arm for recording
all necessary wheel parameters
- Stop function on scanning arm for installing
adhesive weights
- Wheel brake and positioning aid
WBE 4435: Comfortable top model for highest performance
The WBE 4435 is a new development from Bosch that
allows particularly comfortable balancing of wheels on
passengers cars, motorcycles and transporters. The model
has a strikingly slim design and a new weight placement
area with movable cover. This means that the placement
surface is considerably larger. The control panel with arrow
keys makes fast and simple navigation to the desired
functions possible.
Exact weight positioning is guaranteed by nine passenger
car and two motorcycle programs, including, of course,
matching and splitting programs. In the special versions
(S10), a light ring illuminates the rim from the inside. A
position laser provides a line on which the weight is to be
fitted. With the new WBE 4435, wheels with a diameter of
up to 1200 mm, a maximum rim width of 21", a maximum
weight of 80 kg and a rim diameter of 12" to 30" find their
balance.
The electronic scanning arms for quick recording of the
rim distance, rim width and rim diameter open up new
perspectives in convenience. Thanks to the pneumatic
quick clamp, the wheel is immediately secured in the right
position. Simple, targeted positioning and attachment
of concealed adhesive weights is carried out with the
electronic data arm.
The WBE 44 series consists of wheel balancers with
TFT-monitors designed for balancing passenger car,
motorcycle and transporter wheels. Particularly
space-saving and slim design.
- Different static and dynamic balancing options
- Programmable function keys for targeted and timesaving
access to software menus
- Matching of rim and tire imbalance
- Attachment of concealed weights behind the spokes
- Multiple-user function of software
- Space-saving divided wheel cover
- Foot pedal brake for locking the wheel during weight
attachment
- Pneumatic wheel clamping with the version WBE 4425
and WBE 4225
- Easily readable TFT-monitor
- Optional light and laser ring for lighting the interior of
the rim and positioning aid for fitting the balancing weights
- WBE 4430 and WBE 4435 have programmable functions
keys for targeted access to software menus
Equipment supply WBE 4435
Wheel balancer with movable TFT monitor, membrane
keyboard, foot pedal brake, middle
centering flange with pneumatic quick-clamping nut (actuated
via foot pedal), electronic feeler arm for rim data
acquisition, three centering cones, tapered flange, sample
weight, tongs, gauge and holder pins for clamping
equipment
Order number |
Wheel lift (not for WBE 4510/WBE 4515) |
1 695 900 004 |
Position laser and light ring (only for WBE 4230, WBE 4235, WBE 4430 and WBE 4435) |
1 695 654 994 |
Set of quick clamp cones M10x1.25 |
1 695 612 100 |
Centering cone (dia. 88 - 132 mm) |
1 695 653 449 |
Fourth centering cone (dia. 120 - 174 mm) |
1 695 606 300 |
Spacer ring for rims with high wheel offset |
1 695 606 200 |
Three-arm flange for light commercial vehicles |
1 695 653 420 |
Passenger vehicle universal flange, infinitely variable adjustment, incl. centering rings |
1 695 654 043 |
Calibration weight |
1 695 654 376 |
Wire cleaning brush |
0 986 625 053 |
Centering kit for GM/OPEL (without middle centering flange) |
1 695 655 323 |
Centering kit for GM/OPEL Expert (without middle centering flange) |
1 695 655 324 |
Centering kit for BMW (without middle centering flange) |
1 695 655 325 |
Centering kit for Daimler/Smart (without middle centering flange) |
1 695 655 326 |
Set of four centering cones 42 - 111.5 mm |
1 695 655 293 |
Centering system DuoExpert (2 sleeves in carrying case 54-75 mm) |
1 695 625 000 |
Set of variable model-specific clamping plates (QuickPlate) - (4-, 5- and 6-hole rims) |
1 695 655 294 |
Variable model-specific clamping plates (QuickPlate) - (4-hole rims) |
1 695 655 295 |
Variable model-specific clamping plates (QuickPlate) - (5-hole rims) |
1 695 655 296 |
Variable model-specific clamping plates (QuickPlate) - (6-hole rims) |
1 695 655 297 |
Wall chart for QuickPlate |
1 695 655 298 |
FixPlate set (FixPlate No. 1 to 4, 10 centering pins, 25 bolt heads, 1 wall chart) |
1 695 655 299 |
FixPlate No. 1 - 4x98/4x100/4x101.6/4x108/4x114.3/7x150/4x170 (without centering pin and bolt heads) |
1 695 655 300 |
FixPlate No. 2 - 5x98/5x108/5x110/5x115/5x120.65/5x135/5x154.95 (without centering pin and bolt heads) |
1 695 655 301 |
FixPlate No. 3 - 5x100/5x120/5x114.3/5x120/5x127/5x130/5x139.7/5x150/5x165.1 (without centering pin and bolt heads) |
1 695 655 302 |
FixPlate No. 4 - 3x98/3x112/3x114.3/3x115/3x127/3x130/6x135/6x139.7/4x165.1 (without centering pin and bolt heads) |
1 695 655 303 |
Centering pin for FixPlate without bolt heads |
1 695 655 304 |
Wall chart for FixPlate |
1 695 655 305 |
Bolt head/blunt cone/dia. 24.5 mm/length 28 mm/bolt length (incl. head) 80 mm |
1 695 655 306 |
Bolt head/blunt cone/dia. 24.5 mm/length 38 mm/bolt length (incl. head) 90 mm |
1 695 655 307 |
Bolt head/blunt cone/dia. 24.5 mm/length 48 mm/bolt length (incl. head) 100 mm |
1 695 655 308 |
Bolt head/spherical collar/dia. 24.5 mm/length 38 mm/bolt length (incl. head) 90 mm |
1 695 655 309 |
Bolt head/spherical collar/dia. 24.5 mm/length 48 mm/bolt length (incl. head) 100 mm |
1 695 655 310 |
Bolt head/Range Rover/Land Rover/dia. 34 mm/length 28 mm/bolt length (incl. head) 80 mm |
1 695 655 311 |
Bolt head/pointed cone/dia. 22.5 mm/length 48 mm/bolt length (incl. head) 100 mm |
1 695 655 312 |
Bolt head/pointed cone/dia. 22.5 mm/length 58 mm |
1 695 655 313 |
Bolt head/pointed cone/dia. 19 mm/length 55.6 mm |
1 695 655 314 |
Set of model-specific clamping plates (No. 1 to 4), Expert set of five centering pin types, colored, two wall charts and off-road spacer sleeve |
1 695 635 100 |
Off-road set of model-specific clamping plates (2 pieces), colored, two centering pin sets, wall charts and off-road spacer sleeve |
1 695 655 327 |
Model-specific clamping plate (TSP No. 1), colored, without centering pin - 4x95.25/4x98/4x100/4x101.6/4x108/4x114.3/7x150/4x170 |
1 695 654 628 |
Model-specific clamping plate (TSP No. 2), colored, without centering pin - 5x98/5x108/5x110/5x115/5x120.65/5x135/5x154.95 |
1 695 654 629 |
Model-specific clamping plate (TSP No. 3), colored, without centering pin - 5x100/5x112/5x114.3/5x120/5x127/5x130/5x139.7/5x150/5x165.1 |
1 695 654 630 |
Model-specific clamping plate (TSP No. 4), colored, without centering pin - 3x98/3x112/3x114.3/3x115/3x127/3x130/6x135/6x139.7/4x165.1 |
1 695 655 315 |
Centering pin "I" 100 mm long, dia. 19 mm |
1 696 654 864 |
Centering pin "II" 80 mm long, blunt cone, dia. 24.5 mm |
1 695 654 626 |
Centering pin "III" 90 mm long, spherical collar, dia. 24.5 mm |
1 695 654 862 |
Centering pin "IV" 80 mm long, Range Rover/Land Rover, dia. 34 mm |
1 695 654 860 |
Centering pin "V" 100 mm long, blunt cone, dia. 22.5 mm |
1 695 654 921 |
Spacer ring with magnets (40 mm) |
1 695 655 316 |
Spacer sleeve for off-road (40 mm) |
1 695 654 895 |
Motorcycle flange (standard) |
1 695 654 039 |
Clamp kit for single suspension arm with shaft (dia. 19 mm) |
1 695 654 060 |
Quick clamping unit Quick-Fix for 14 mm shaft |
1 695 654 117 |
Quick clamping unit Quick-Fix for 19 mm shaft |
1 695 655 321 |
Centering sleeve BMW C-R-K-models for 14 mm shaft |
1 695 654 931 |
Centering set for Ducati, Triumph (19 mm axle) |
1 695 653 538 |
Printer set with mount (only for WBE 4510/WBE 4515) |
1 695 654 956 |
Center shaft (dia. 10 mm) incl. nuts and two spacer sleeves for mopeds. Special accessories for motorcycles (standard). Length 177 mm |
1 695 653 430 |
Center shaft (dia. 14 mm) incl. nuts and two spacer sleeves for mopeds. Special accessories for motorcycles (standard). Length 233 mm |
1 695 604 700 |
